M12 circular connector and cable

M12 Accessories Classification

M12 Accessories Classification: M12 Male Dust Cover with Chain、 M12 Female Dust Cover with Chain、 M12 Male Dust Cover、 M12 Female Dust Cover、M12 Nuts

M12 Accessories

M12 Accessories

M12 circular connector Technical parameter

Products Introduction
  • M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
  • M12 series with IP67/68 rating, provides with 2, 3, 4, 5, 6, 8, 12, 17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.
  • We supply full series of M12 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions and Y Connectors;
  • A, B, C, D, K, L, X, S, T coding available;
  • X-coded support higher bandwidth needs of up to 10 Gb/s;
  • Shield and un-shield Version Available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C.

M12 Adapters Classification

M12 Adapters Classification:M12 T Type Male to Female Adapter、M12 Y Type Male to Female Adapter、M12 to Rj45 Right Angle Adapter、M12 Male to Rj45 Straight Adapter、M12 Female to Rj45 Straight Adapter



M12 Adapter

M12 Adapter

M12 Adapters

M12 Adapters

M12 Adapters Technical parameter

Products Introduction
  • M12 Y type or T type Splitter helps to splits wires into 2 separate connectors, allowing installation of two single-channel input or output devices to each port of hardwired distribution box. Connectors are available with parallel circuits, which allow input or output signals to run or trigger devices simultaneously.
  • Also provide M12 to RJ45 adapters to convert M12 to RJ45 ethernet signals.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 4, 5, 8 and 12 positions;
  • A, B, D coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 4 pin, 60V for 5pin, 30V for 8/12pin
  • Rated current: 4A for 4/5pin, 2A for 8pin, 1.5A for 12pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight
  • Mechanical operation: >500 mating cycles
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68



M12 Overmolded Cables Classification

M12 Overmolded Cables Classification:M12 Single Ended Cable Straight Female、M12 Single Ended Cable Straight Male、M12 Single Ended Cable Right Angle Male、M12 Single Ended Cable Right Angle Female、M12 Double Ended Cable Straight Male to Female、M12 Double Ended Cable Straight Female to Female、M12 Double Ended Cable Straight Male to Male、M12 Double Ended Cable Right Angle Male to Female、M12 Double Ended Cable Right Angle to Straight、M12 to Usb Cable、M12 to Rj45 Cable、M12 to D-sub Cable

M12 Overmolded Cables

M12 Overmolded Cables Technical parameter

M12 Overmolded Cables

Products Introduction
  • The M12 overmolded cables provide safely and reliably communication between devices and across networks within an industrial environment. A ready-to-plug solution for versatile systems to be quickly and easily established.
  • Ideal for Ethernet & Fieldbus application with a wide selection of connector configurations and jacketed cable materials.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 3, 4, 5, 6, 8, 12 and 17 positions;
  • A, B, C, D, T, X coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • M12 molding cable, PVC or PUR cable for selection, can be customized with different length.
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
  • Cable Material: PVC/PUR
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight/Angled
  • Mechanical operation: >500 mating cycles
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68

M12 Wire Harness Classification

M12 Wire Harness Classification:M12 Wire Harness Male、M12 Wire Harness Female、M12 Wire Harness with Terminal

M12 Wire Harness

M12 Wire Harness

M12 Wire Harness

M12 Wire Harness

M12 Wire Harness technical parameter

Products Introduction M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;
  • A, B, C, D, K, L, X, S, T coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Alternative mount arrangements for solder cup or PCB;
  • Panel Mount and distribution version available;
  • Available as a loose piece or as a pre-made M12 cables;
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight/Angled
  • Mechanical operation: >500 mating cycles
  • Wire gauge for solder cable type: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68

M12 Molded Cable Connector Classification

M12 Molded Cable Connector Classification:M12 Molded Cable Connector Unshield Female、M12 Molded Cable Connector Unshielded Male、M12 Molded Cable Connector Shield Male、M12 Molded Cable Connector Shield Female

M12 Molded Cable Connector

M12 Molded Cable Connector

M12 Molded Cable Connector

M12 Molded Cable Connector

M12 Molded Cable Connector Technical Parameter

Products Introduction
  • The M12 molded cable connectors are welded and injection-molded, provide shielded and unshielded versions, provide reliable connections in harsh conditions and climatic environments.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 3, 4, 5, 6, 8, 12 and 17 positions;
  • A, B, C, D, T, X coding available;
  • Shield and un-shield Version Available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Used for M12 molding cable, customized M12 overmolded Cables also available.
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight
  • Mechanical operation: >500 mating cycles
  • Wire gauge: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68

M12 Field Wireable Connetor Classification

M12 Field Wireable Connetor Classification:M12 Plastic Shell Straight Female Plug、M12 Plastic Shell Straight Male Plug、M12 Plastic Shell Right Angle Female Plug、M12 Plastic Shell Right Angle Male Plug、M12 Metal Shell Straight Female Plug、M12 Metal Shell Straight Male Plug、M12 Metal Shell Right Angle Female Plug、M12 Metal Shell Right Angle Male Plug



M12 Field Wireable Connetor

M12 Field Wireable Connetor

M12 Field Wireable Connetor

M12 Field Wireable Connetor

M12 Field Wireable Connetor technical parameters

Products Introduction
  • The M12 field wireable connectors are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
  • M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 3, 4, 5, 8, 12 and 17 positions;
  • A, B, D, X coding available;
  • Shield and un-shield Version Available with metal or plastic housing;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C;
  • PG7 type for 4~6mm cable, PG9 type for 6~8mm cable.
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight/Angled
  • Mechanical operation: >500 mating cycles
  • Wire gauge: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68

M12 Panel Receptacles Connector Classification

M12 Panel Receptacles Connector Classification: M12 Pcb Mount Straight Male Socket、M12 Pcb Mount Straight Female Socket、M12 Pcb Mount Right Angle Male Socket,M12 Pcb Mount Right Angle Female Socket、M12 Flange Male Socket、M12 Flange Female Socket、M12 Front Mount Pcb Male Socket、M12 Front Mount Pcb Female Socket、M12 Front Mount Solder Cable Male Socket、M12 Front Mount Solder Cable Female Socket、M12 Back Mount Pcb Male Socket、M12 Back Mount Pcb Female Socket、M12 Back Mount Solder Cable Male Socket、M12 Back Mount Solder Cable Female Socket



M12 Panel Receptacles Connector

m12 panel receptacle connector

M12 Panel Receptacles Connector

M12 Panel Receptacles Connector Classification

Products Introduction M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;
  • A, B, C, D, K, L, X, S, T coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Alternative mount arrangements for solder cup or PCB;
  • Panel Mount and distribution version available;
  • Available as a loose piece or as a pre-made M12 cables;
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight/Angled
  • Mechanical operation: >500 mating cycles
  • Wire gauge for solder cable type: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68

What are the types of M12 Series connectors

What are the types of M12 Series connectors

M12 Series Categories:M12 Field Wireable ConnetorM12 Molded Cable ConnectorM12 Panel ReceptaclesM12 Overmolded CablesM12 Wire HarnessM12 AdaptersM12 Accessories

M12 Series connectors

M12 Series connectors

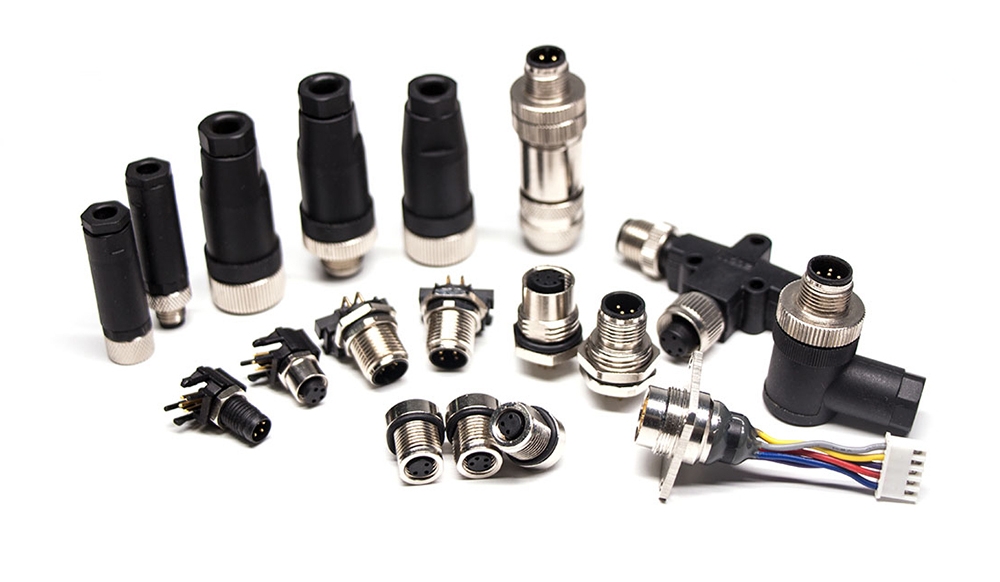

M12 Connector Products Introduction

  • M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
  • M12 series with IP67/68 rating, provides with 2, 3, 4, 5, 6, 8, 12, 17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.
  • We supply full series of M12 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.

M12 Connector Products Feature

  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions and Y Connectors;
  • A, B, C, D, K, L, X, S, T coding available;
  • X-coded support higher bandwidth needs of up to 10 Gb/s;
  • Shield and un-shield Version Available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C.

M12 circular connector product features

M12 Circular Connector

M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.

M12 series provides with 3, 4, 5, 8,12,17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.



Product Features

  • Pin configurations: 3, 4, 5, 6, 8,12 and 17 positions and Y Connectors
  • A, B, C, D, X, S, T coding available
  • X-coded support higher bandwidth needs of up to 10 Gb/s
  • Non-removable Contacts
  • Meets IP67 waterproof requirements
  • Temperature Range: -40°C ~ + 90°C
  • Alternative mount arrangements for solder cup or PCB
  • Panel Mount and distribution version available
  • Available as a loose piece or as a pre-made M12 cables
M12 circular connector

M12 circular connector

FAQ

1.What is the difference between M12 connector coding?

  • A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.
  • B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.
  • C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.
  • D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.
  • S-coded are for ac power application.
  • T-coded are for dc power application.
  • X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.





  1. What is the application prospect of M12 connector

M12 connectors will be more suitable for the Industrial Internet of Things (IIoT).

The IIoT is a real-time data connection, driven by processing and transmitting data at faster speeds, on progressively smarter and smaller machines. The value of the IIoT goes beyond data collection and transmission, it benefits including but not limited to the ability to identify disruptions, discovering unused capacity, reducing maintenance costs and downtime, improving safety,  and maximizing overall equipment effectiveness.

M12 connectors’ advantages in the speed, reliability, and ruggedness, etc perfect match the smart factories’ demand.



  1. How to purchase M12 connectors from Renhotec?
  • Please send us the specification or drawing for the items with quantity and performance requirements.
  • We will offer you a detailed quote with lead time, package, payment term for confirm, normally in 3 days.
  • We have own online mall www.elecbee.com, click the link and enjoying the online shopping.

Standard used by M12 connector

The M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. was first released in 1982 and is a non-standardized 7⁄8-inch three-pin connector used in a few applications. The unique feature of this connector is its connection nut (in most cases)-the housing of the cable end is locked at the cable end in the axial direction, but can rotate freely-so it can be screwed to the socket side On the matching male or female fasteners. First, the connector is standardized by the IEC 61076-2-101 standard for sensors and actuators. In the following years, the standard added a variety of M12 code definitions (detailed descriptions of pin geometry and functional changes), as well as two smaller formats for actuators and PLCs, switches, and I/O Device. These connectors include M8 connectors (defined by IEC 61076-2-104, fastener diameter of 8 mm) and M5 connectors (defined by IEC 61076-2-105, fastener diameter of 5 mm).

The latest version of IEC 61076-2-010 (2020) contains one of the most added contents of the standard in a long period of time-the support and official definition of push-pull connections. Cable companies participating in the standard development include Molex, CONEC, Weidmüller, Phoenix Contact and HARTING. The main advantages of push-pull M12 connectors are:

How to significantly reduce installation time (no need to tighten nuts and verify applied torque)

How to achieve a more compact connection than traditional M12 connectors.



In fact, IEC 61076-2-010 2020 simultaneously defines the geometry of the internal locking subassembly on one half of the female push-pull connector and the external locking subassembly on the half of the male push-pull connector. This will ensure cross compatibility between cable products.

M12 circular connector

M12 circular connector

Another connector option

Different from the push-pull M12, there is another circular connector for communication and industrial HMI peripherals-the mini DIN connector. Here, DIN stands for Deutsches Institut für Normung-a standard regulatory organization that regulates the internal structure and connection of these cable terminals. This connector relies on the intervening fit (friction) between the cable end sleeves to keep it inserted into the socket after assembly. This 9.5 mm (3/8 in.) mini DIN connector uses a pin array with 3, 4, 5, 6, 7, 8, or 9 electrical connectors to prevent accidental misconnection of similar-looking mini DIN cables . In many cases, suppliers will add proprietary color codes to the cable ends and machine-side sockets to help assemblers align the two parts of the connection, making installation easier.

Both mini-DIN and mini M12 connectors have their own unique applications. However, there are more non-standard mini-DIN connectors on the market-although the design will be more free, it has also caused confusion. In addition, the interventional fit of the mini-DIN fixed sleeve allows quick connection and disconnection. In contrast, the screw connection of the M12 connector does require more time, but it is inherently safer.

In addition to the number of pins, the code version of the M12 connector has also been standardized. The pin array, channels and grooves (to prevent incorrect mating), and electromagnetic shielding design are specified in detail.

A-coded M12 connectors are everywhere, and they are still used in network sensors and other small devices powered by DC power. B-coded M12 connectors are very common in PROFIBUS devices. The C-coded double key slot (M12 power supply) connector performs well in designs that require AC power for small automation components. The D-coded M12 connector supports 100 Mb/sec Ethernet and PROFINET connections.

The newer M12 code version includes K-code and L-code connectors, which support AC and DC power supply respectively. Similar options include S-coded connectors (which can provide voltages up to 690V for running AC motors), and T-coded M12 connectors for DC power supplies. However, the use of X-coded M12 connectors in supporting 10Gb/s Industrial Ethernet and providing power to actuators such as stepper motors has risen sharply, using the Ethernet 802.3at (PoE+) connection feature for power supply. The latter provides enough power so that various actuators can run at full power.
