M12 Molded Cable Connector Classification

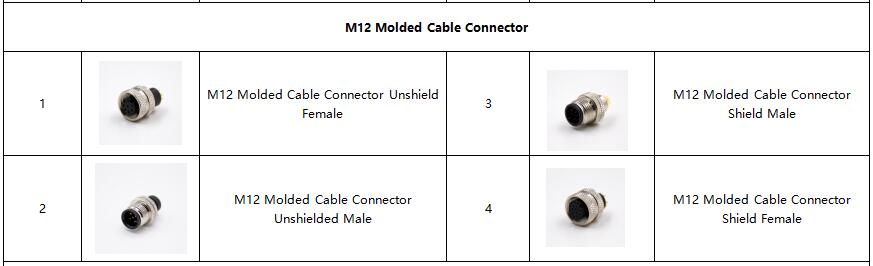

M12 Molded Cable Connector Classification:M12 Molded Cable Connector Unshield Female、M12 Molded Cable Connector Unshielded Male、M12 Molded Cable Connector Shield Male、M12 Molded Cable Connector Shield Female

M12 Molded Cable Connector

M12 Molded Cable Connector

M12 Molded Cable Connector

M12 Molded Cable Connector

M12 Molded Cable Connector Technical Parameter

Products Introduction

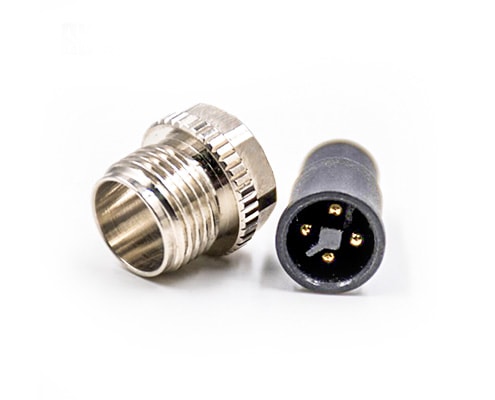

  • The M12 molded cable connectors are welded and injection-molded, provide shielded and unshielded versions, provide reliable connections in harsh conditions and climatic environments.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 3, 4, 5, 6, 8, 12 and 17 positions;
  • A, B, C, D, T, X coding available;
  • Shield and un-shield Version Available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Used for M12 molding cable, customized M12 overmolded Cables also available.
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5/6pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5/6 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight
  • Mechanical operation: >500 mating cycles
  • Wire gauge: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68
