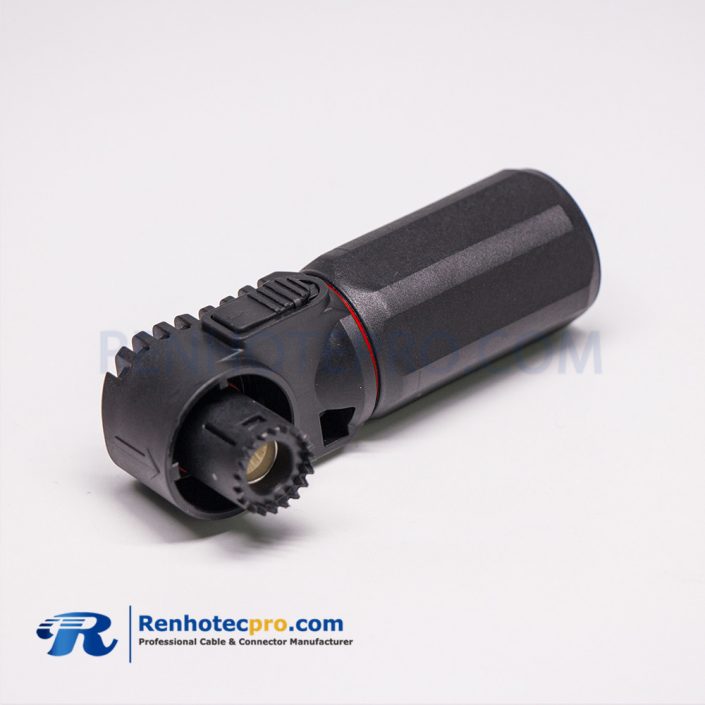

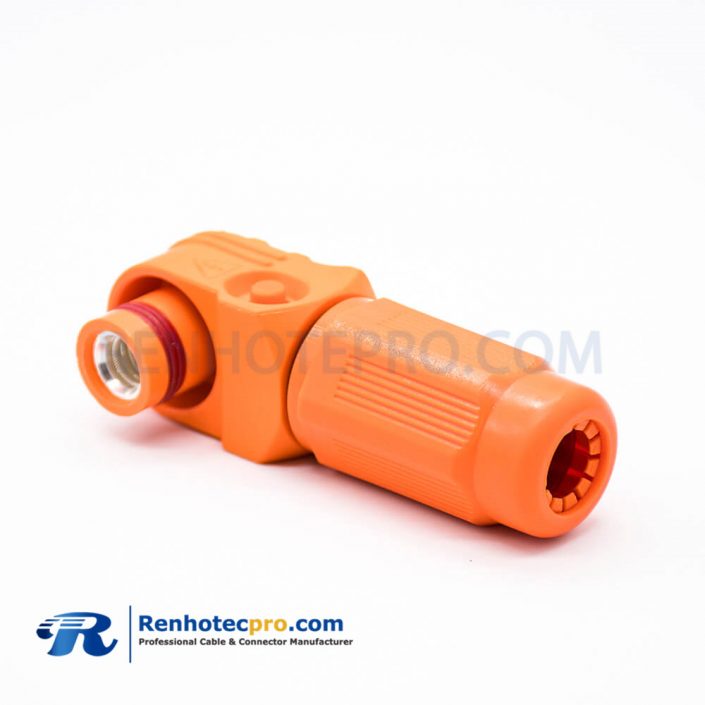

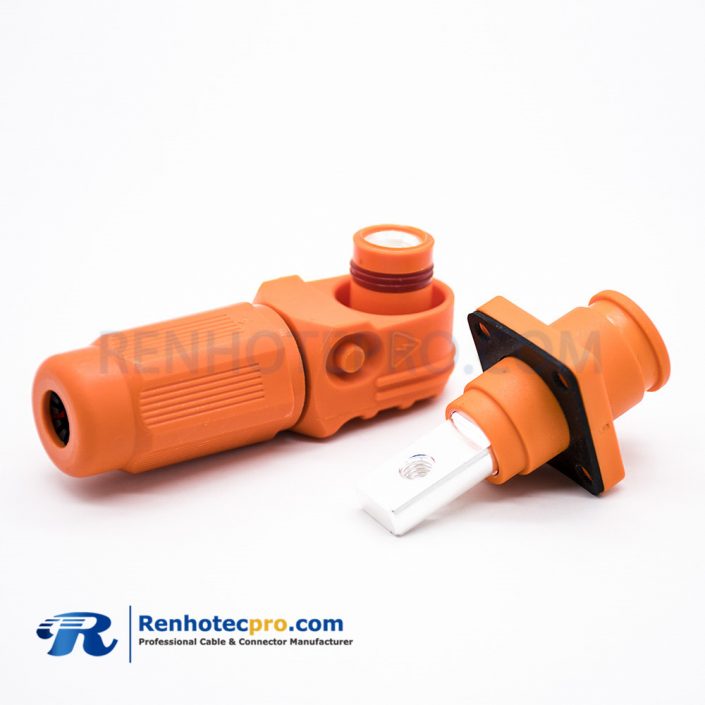

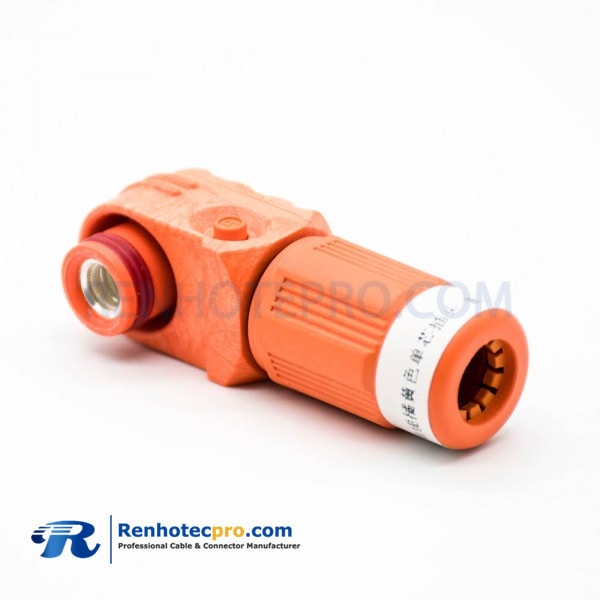

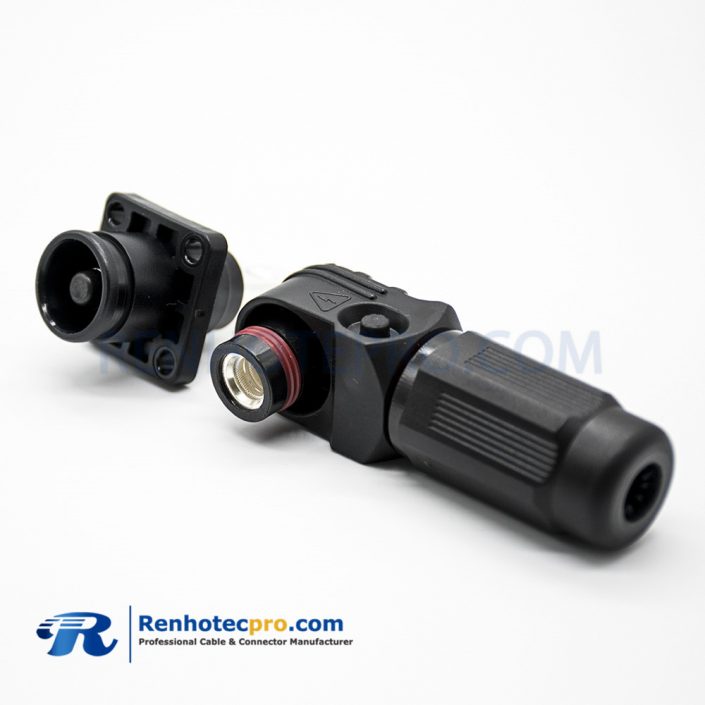

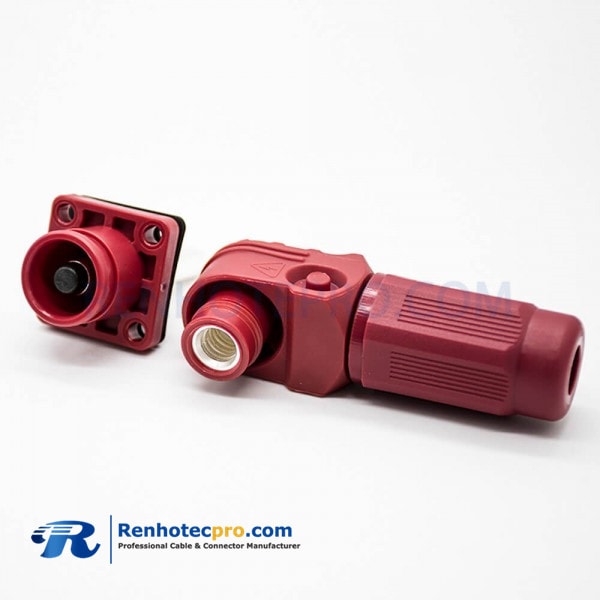

Energy storage connectors provides 2-pin and 3-pin power configurations. Each contact ranges from 100A to 500A, and can accommodate two small-size signal contacts for HVIL (High Voltage Interlock Loop).

  • Touch Proof and 360°Rotating Plug;
  • Compact robust design with Quick Lock and Press-to- Release Design.
  • Three Color (Red, Black, Orange) are available;
  • Various Termination Options;

Related Categories

Interested with our Battery Storage Connectors? Ask for a FREE quote now!

We will send you FREE quotation or samples before you make a decision, no cost, no risk!

Battery Storage Connectors Technical Datasheet

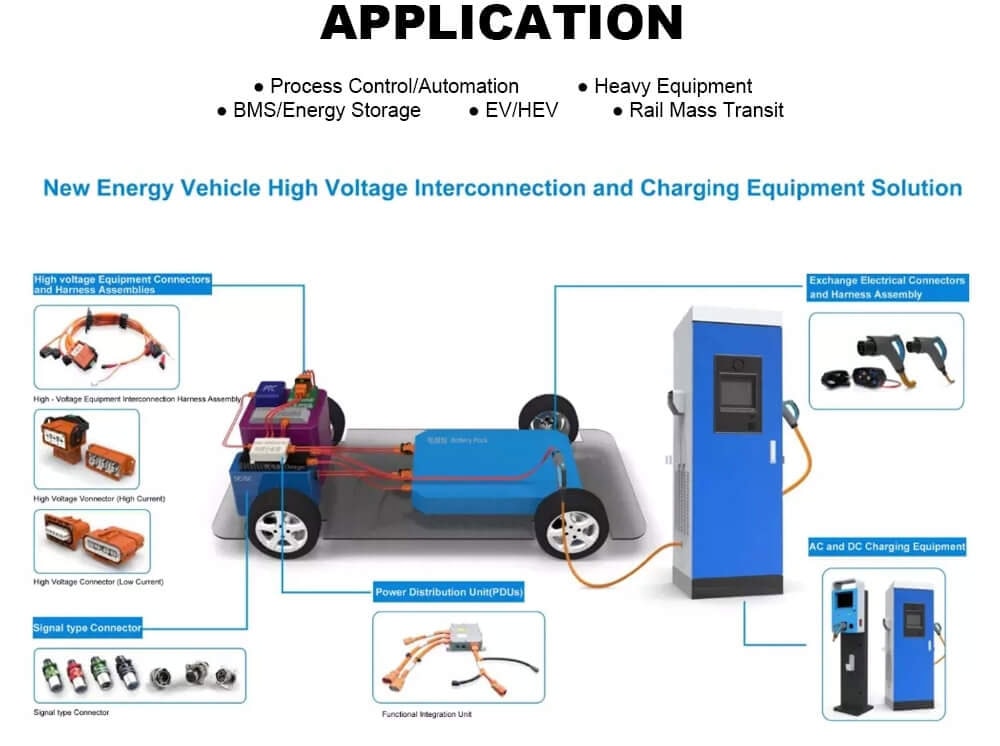

Connector Application:

  • BMS/Energy Storage
  • EV/HEV
  • Rail Mass Transit
  • Process Control/Automation
  • Heavy Equipment


  • Shell: PA66
  • Contact: Cooper alloy, Silver plating

Electrical Characteristics

  • Rated Voltage: 1000V/DC
  • Rated Current: From 60A to 500A MAX
  • Withstand Voltage: 2500V AC
  • Insulation Resistance: ≥1000MΩ

Mechanical Characteristics:

  • Terminal: 6-12mm
  • Cable Range: 10~95mm²
  • Connection Type: Terminal machine
  • Mating Cycles: >500
  • Shielding: 360°

Environmental Characteristics

  • Operating Temperature : -40°C ~ + 125°C
  • IP rating: IP67
  • Flammability Rating: UL94 V-0

Battery Storage Application

Battery Storage connectors stand for a new generation of battery charging technology, more efficient, safer, space-saving and in line with aesthetic design.

Renhotec’s energy storage connector can operate in the 800V DC to 1000V DC range and can be used in a variety of applications, including power converters, hybrid vehicles, heavy equipment electrification, two-phase and three-phase motors, and starter generators.
