YW Series Connectors

Renhotec provide wide range of Y50 Series Connectors for your choice. And in this page you could find our YW Series Connectors for reference.

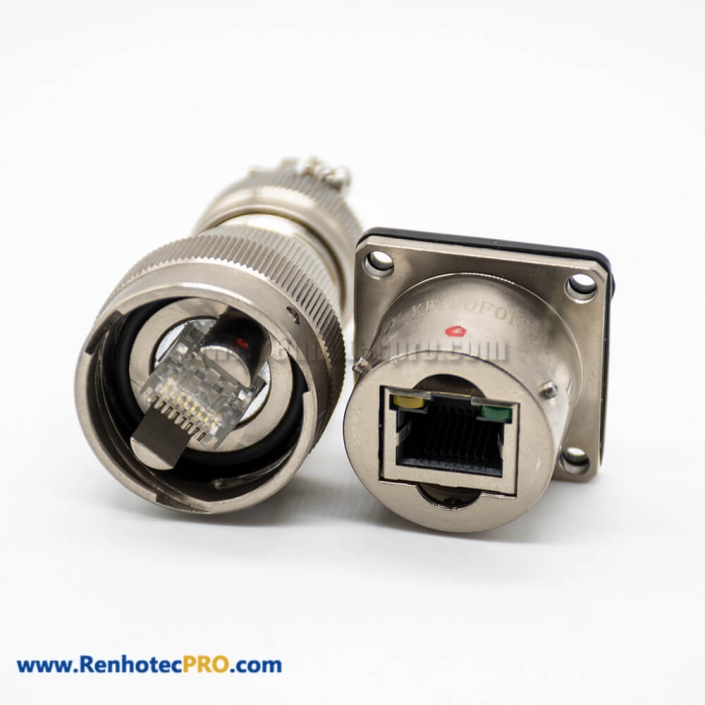

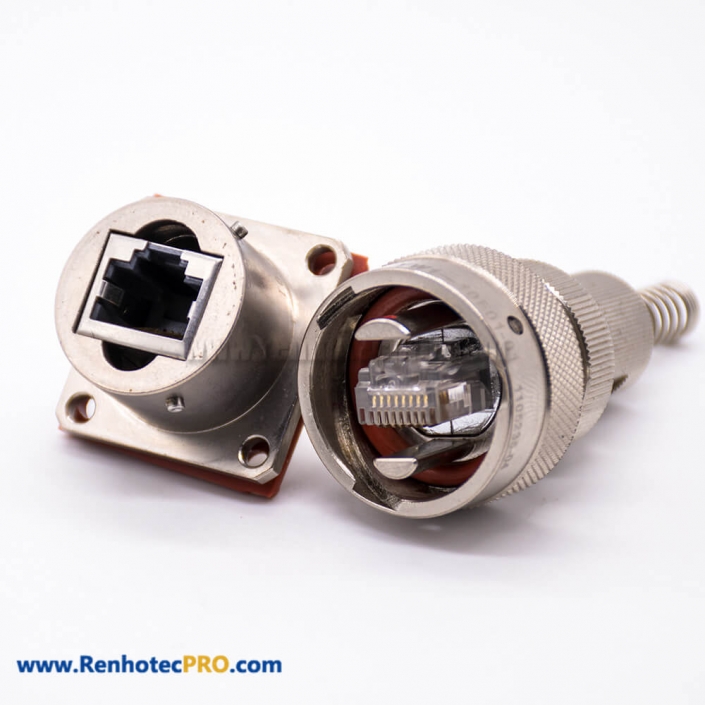

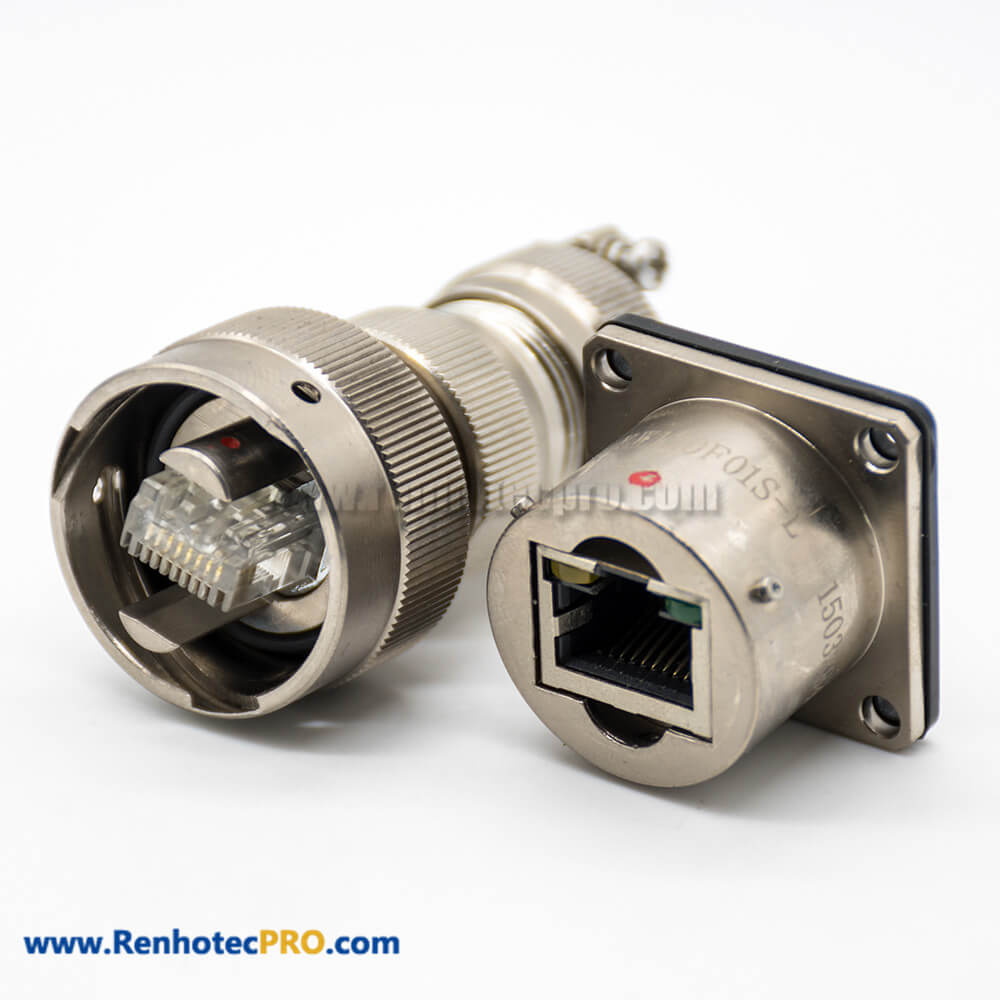

YW RJ-45 Interface Plug Cable Solder Socket Panel Mount Solder Cup Male Butt-Joint Female Bayonet Coupling 4 Hole Flange Straight Circular Connector

Technical Specifications of Y50 Series Circular Connectors

Mechanical Properties

Vibration:                           10Hz-2000Hz,&acceleration 196 m/s2

Shock:                                Acceleration 980.7 m/s2

Bump:                                392 m/s2

Mechanical life:                  500 times

Environmental Performance

Working temperature:        -55°C~+125°C

Relative humidity:              40°C±2°C

Working pressure:             101.33kPa-1.33Pa

Air tightness:                     ordinary socket:no more than 6×10-2 PaL/s
Air tightness:                     glass sintered socket:no more than 1×10-5 PaL/s

Electrical performance

—withstand voltage and rated working voltage

Work level       Working environment       Withstand voltage V       Rated voltage V

M                                                             1300                                500

I              Normal temperature status       1500                                600

II                                                               2300                               1000

III                                                              800                                  300

M                                                              350                                  250

I       Low air pressure conditions             375                                  300

II                        (4.39 kPa)                       500                                 450

III                                                               250                                 150

—Insulation resistance

Work level       Temperature              insulation resistance(MΩ)

M                                                               3000

I                   Normal temperature              3000

II                                                                5000

III                                                               3000

M                                                               100

I                    Damp heat                            100

II                                                                 100

III                                                                100
