M40 Power Solution Connector Systems are designed with excellent performance and reliability. The simplistic design approach help to reduce initial procurement and assembly cost, while ensuring compatibility to all other existing standard layouts.

  • With EMI/RFI shielding capabilities to reducing assembly preparation times..
  • With a screw coupling mechanism and IP67 rating.
  • Ideal for advanced servo drive encoder feedback applications, packaging, robotic, printing, machine tool, medical and automation environments.

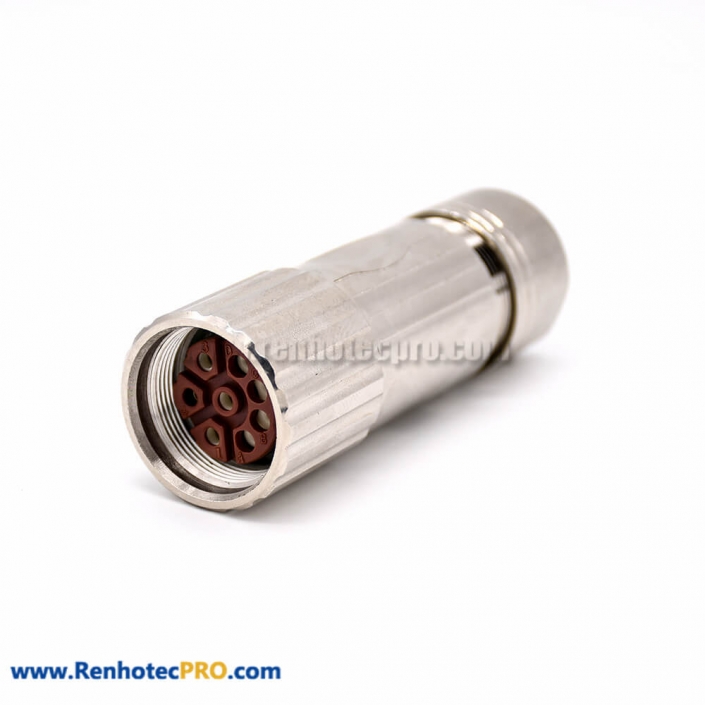

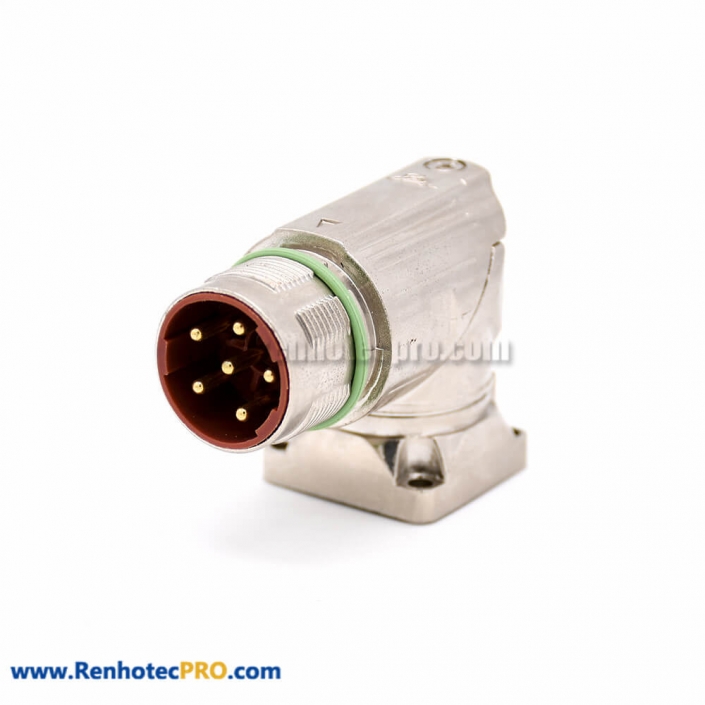

M40 Connector Products

All 2 /AC (Alternating Current) 0 /AC (Alternating Current) 0 /AC (Alternating Current) 0 /Battery Storage Connector 0 /Battery Storage Connector cable 0 /BPA20 Series 0 /BPC10 Series 0 /BPC20 Series 0 /BPC30 Series 0 /BPC50 Series 0 /Connector 0 /D Sub connector 0 /D-sub Combination Connectors 0 /D-sub High Density Connector 0 /D-sub Standard Connector 0 /DC (Direct Current) 0 /DC (Direct Current) 0 /Dustproof Cap 0 /EV Charger 0 /GB/T Series 0 /GX 12 Connector 0 /GX 16 Connector 0 /GX 20 Connector 0 /GX 25 Connector 0 /GX 30 Connector 0 /Gx Aviation Connector 0 /HA Series 0 /HB Series 0 /HDMI Connector 0 /Heavy Duty Connector 0 /High Voltage High Current Cables 0 /High Voltage High Current Connectors 0 /High Voltage power Connector 0 /HT Series 0 /HVIL Cable 0 /HVIL Connector 0 /Industry Connector 0 /M12 Accessories 0 /M12 Adapter & Splitter 0 /M12 Connectors & Cables 0 /M12 Field Wireable Connectors 0 /M12 Molded Cable Connector 0 /M12 Overmolded Cables 0 /M12 Panel Receptacles 0 /M12 Wire Harness 0 /M16 Connectors & Cables 0 /M16 Field Wireable Connectors 0 /M16 Molded Cable Connector 0 /M16 Overmolded Cables 0 /M16 Panel Receptacles 0 /M18 Connectors & Cables 0 /M18 Field Wireable Connetor 0 /M23 Connectors & Cables 0 /M23 Field Wireable Connectors 0 /M23 Panel Receptacles 0 /M40 Connectors & Cables 0 /M40 Field Wireable Connetor 1 /M40 Panel Receptacles 1 /M5 Connectors & Cables 0 /M5 Panel Receptacles 0 /M8 Accessories 0 /M8 Connectors & Cables 0 /M8 Field Wireable Connectors 0 /M8 Molded Cable Connector 0 /M8 Overmolded Cables 0 /M8 Panel Receptacles 0 /M8 Wire Harness 0 /M9 Connectors & Cables 0 /M9 Field Wireable Connetor 0 /M9 Panel Receptacles 0 /Manual Service Disconnect 0 /MC4 Cable 0 /MC4 Solar Connector 0 /MC4 Tools 0 /Micro USB 0 /MIL 38999 Connector 0 /Mini MSD Series 0 /Mini USB 0 /MS 5015 Connector 0 /MS5015-10SL 0 /MS5015-14S 0 /MS5015-16 0 /MS5015-16S 0 /MS5015-18 0 /MS5015-20 0 /MS5015-22 0 /MS5015-24 0 /MS5015-28 0 /MS5015-32 0 /MSD Series 0 /Network modular connector 0 /New Energy EV Connector 0 /P Series Connector 0 /P20 Connector 0 /P24 Connector 0 /P28 Connector 0 /P32 Connector 0 /P40 Connector 0 /P48 Connector 0 /Push-Pull High Current Series 0 /PV Solar Connector 0 /RA16 Connector 0 /RA20 Connector 0 /RA24 Connector 0 /RA28 Connector 0 /RA32 Connector 0 /RA40 Connector 0 /RJ45 Connector 0 /SAEJ1772/Type1 Series 0 /SCSI Cable 0 /SCSI Series 0 /Sensor Connector 0 /Trunk Battery Connectors 0 /Type A 2.0 0 /Type A 3.0 0 /Type B 2.0 0 /Type B 3.0 0 /Type C 0 /Type2 Series 0 /USB Connector 0 /Waterproof D-sub 0 /Waterproof USB connector 0 /Y11 Series 0 /Y27 Series 0 /Y50 Series Electrical Connectors 0 /Y50X Series 0 /Y55 Series 0 /YGD Series 0 /YW Series 0

Related Categories

Interested with our M40 Connectors? Ask for a FREE quote now!

We will send you FREE quotation or samples before you make decision, no cost, no risk!

M40 Connector Technical Datasheet

Connector Features:

  • M40 connectors available in: 6 pin, 8 pin
  • Non-removable Contacts
  • Available as loose piece or as pre-made cables

Electrical Characteristics

  • Rated current: 175A (Power), 30A (Signal)
  • Contacts resistance:< 1mO (Power), < 3mO(Signal)
  • Rated voltage: 6000V (Power), 4000V (Signal)

Mechanical Characteristics:

  • Coupling: thread locking
  • Min. Mating Cycles >50

Environmental Characteristics

  • Ambient temperature: -20°C ~ + 130°C
  • IP rating: IP67

M40 Connector Application

M40 Power Solution Connector Systems products are ideally suited for advanced servo drive encoder feedback applications, packaging, robotic, printing, machine tool, medical and automation environments where control signal transmission or power are required in a robust and compact delivery system.
