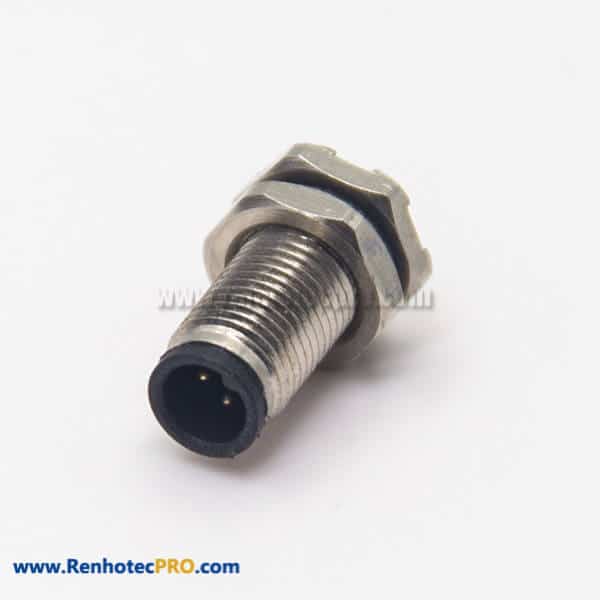

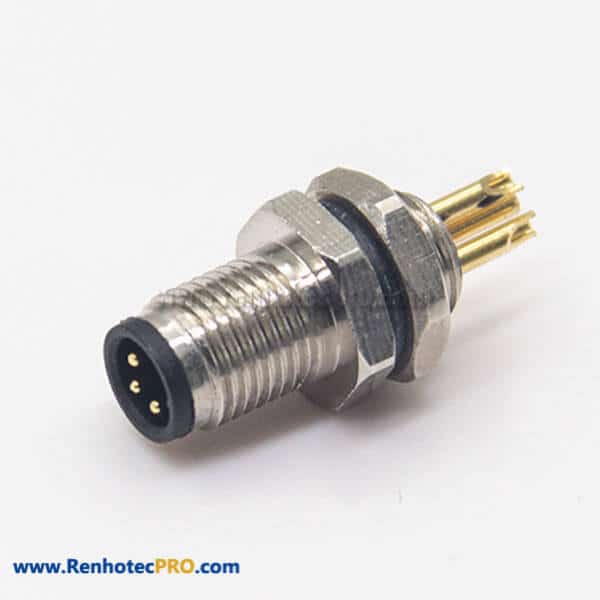

M5 connectors is specifically developed for the miniature sensor market and any similar applications that requires multiple sensors within a miniaturized area.

  • The most compact connector type in the M-Series range.
  • With a screw coupling mechanism and IP67 rating.
  • Ideal for many applications where a small yet rugged and compact connector solution is required to deliver a secure and reliable signal transfer.

Related Categories

Interested with our M5 Connectors? Ask for a FREE quote now!

We will send you FREE quotation or samples before you make decision, no cost, no risk!

M5 Connector Technical Datasheet

Connector Features:

  • M5 connectors available in: 3 pin, 4 pin
  • Non-removable Contacts
  • Available as loose piece or as pre-made cables

Electrical Characteristics

  • Rated current: 1 A
  • Contacts resistance: ≤ 5 mΩ
  • Insulation resistance: ≥100 MΩ
  • Rated voltage: 60V
  • Standard: IEC 61076-2-104

Mechanical Characteristics:

  • Coupling: thread locking

Environmental Characteristics

  • Ambient temperature: -40°C ~ + 80°C
  • IP rating: IP67

M5 Connector Application

M5 circular connectors are ideal for many applications where a small yet rugged and compact connector solution is required to deliver a secure and reliable signal transfer.

Renhotec’s M5 circular connector product line is particularly suited to transportation and control systems, automated doors & ramps, sensor connectivity, automotive, process control, commercial electronics & instrumentation applications as well as many data & communication device applications that require reliable and robust miniature sensors.
