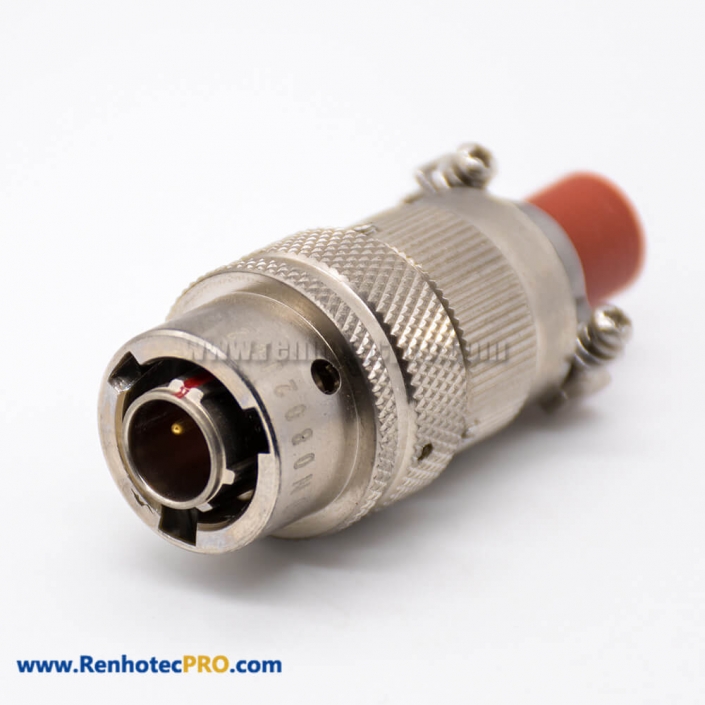

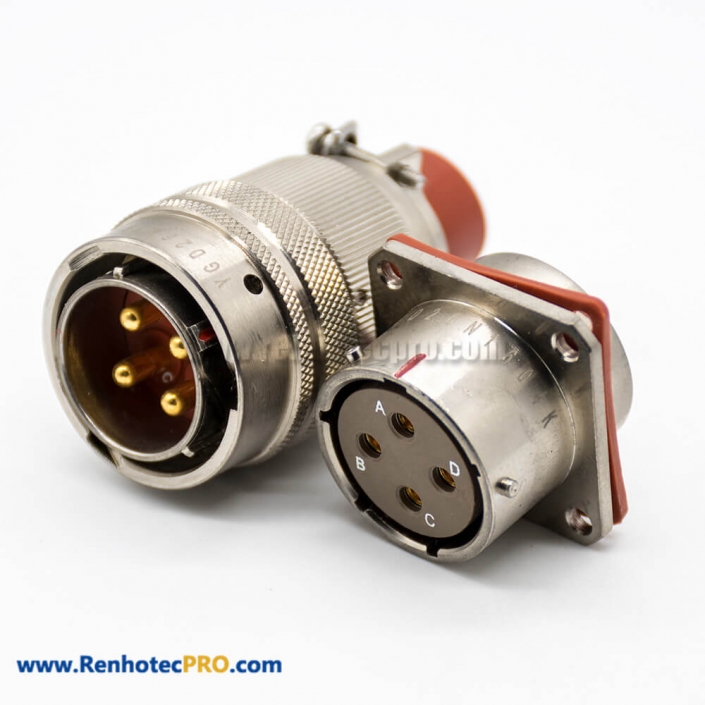

YGD Series Connectors

Renhotec provide wide range of Y50 Series Connectors for your choice. And in this page you could find our YGD Series Connectors for reference.

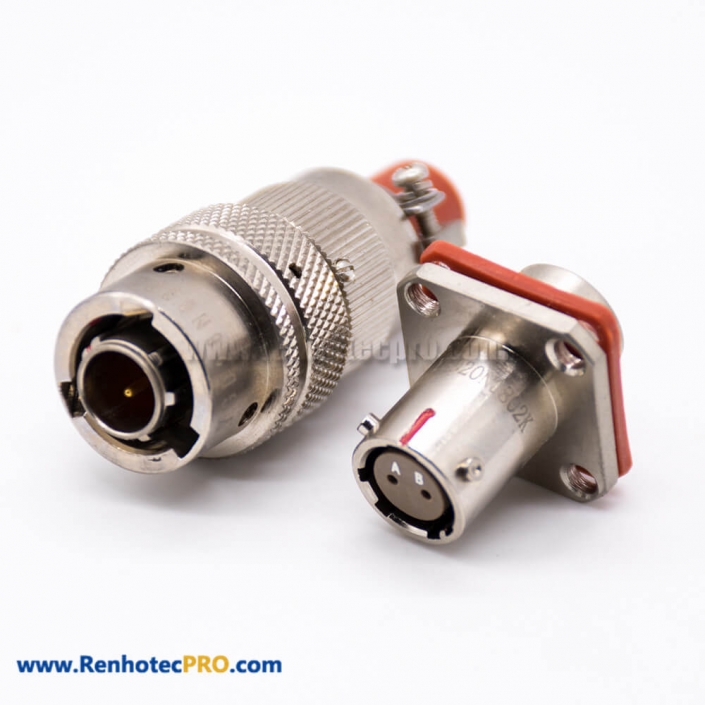

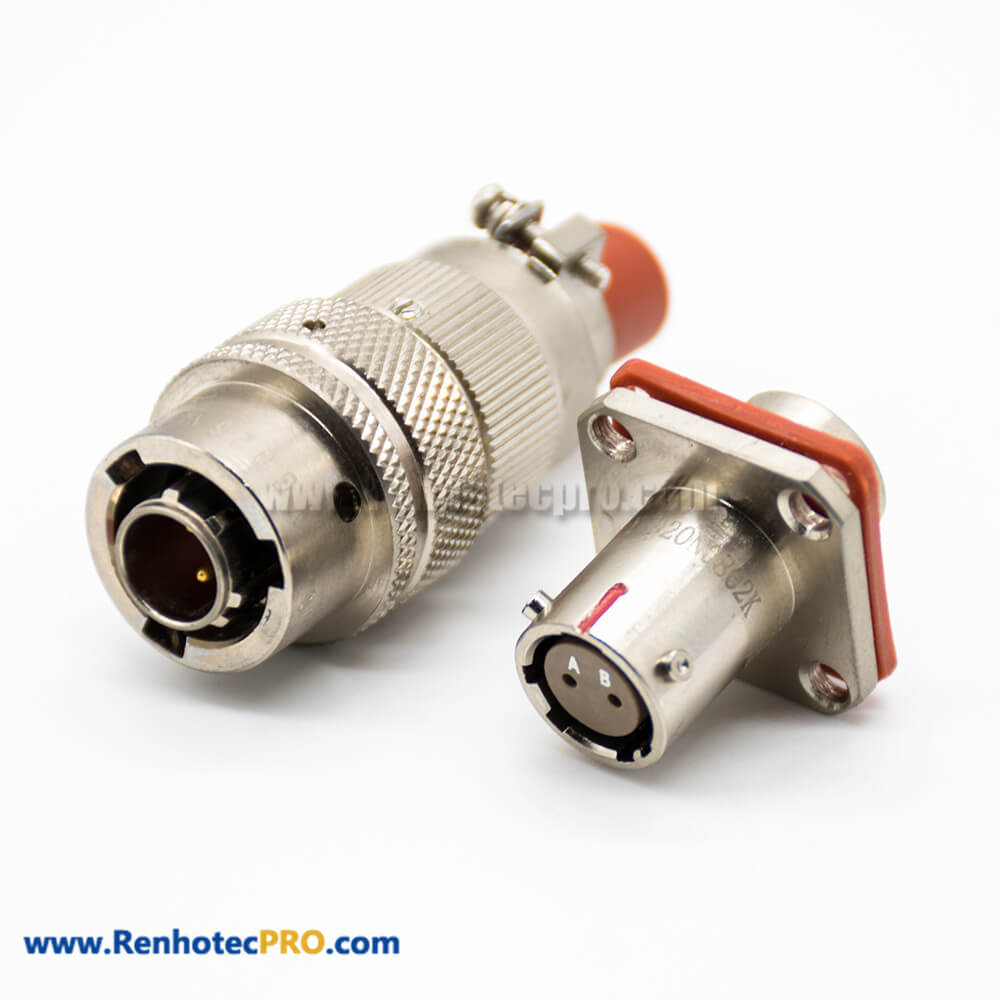

YGD 08 Shell 2Pin Cable Bayonet Coupling Socket Solder Cup 4 Hole Flange Plug Solder Straight Male Butt-Joint Female Aluminum Alloy

Technical Specifications of Y50 Series Circular Connectors

Mechanical Properties

Vibration:                           10Hz-2000Hz,&acceleration 196 m/s2

Shock:                                Acceleration 980.7 m/s2

Bump:                                392 m/s2

Mechanical life:                  500 times

Environmental Performance

Working temperature:        -55°C~+125°C

Relative humidity:              40°C±2°C

Working pressure:             101.33kPa-1.33Pa

Air tightness:                     ordinary socket:no more than 6×10-2 PaL/s
Air tightness:                     glass sintered socket:no more than 1×10-5 PaL/s

Electrical performance

—withstand voltage and rated working voltage

Work level       Working environment       Withstand voltage V       Rated voltage V

M                                                             1300                                500

I              Normal temperature status       1500                                600

II                                                               2300                               1000

III                                                              800                                  300

M                                                              350                                  250

I       Low air pressure conditions             375                                  300

II                        (4.39 kPa)                       500                                 450

III                                                               250                                 150

—Insulation resistance

Work level       Temperature              insulation resistance(MΩ)

M                                                               3000

I                   Normal temperature              3000

II                                                                5000

III                                                               3000

M                                                               100

I                    Damp heat                            100

II                                                                 100

III                                                                100
