M9 connectors is a subminiature circular connector series with M9 x 0.5 threaded locking. Which is slightly smaller than M8 threaded variants.

  • With a screw coupling mechanism and IP67 rating.
  • Ideal for many applications where a small yet rugged and compact connector solution is required to deliver a secure and reliable signal transfer.

M9 Connector Products

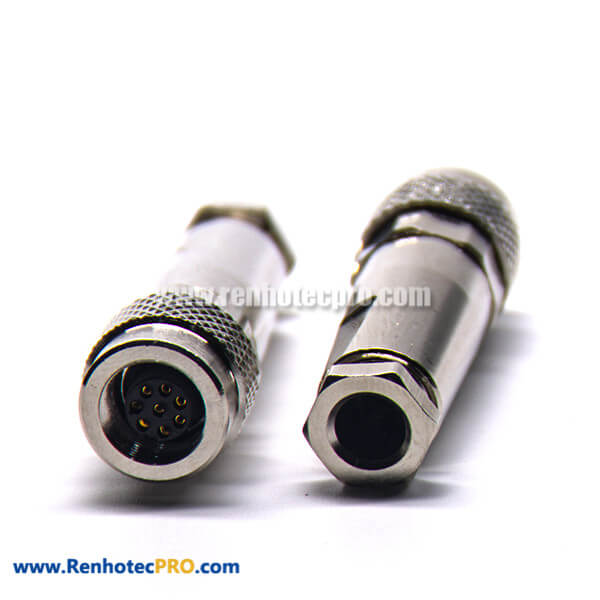

M9 8 pin Straight Female Metal Plug Field Wireable Connector

M9 8 pin Straight Female Metal Plug Field Wireable Connector

M9 8pin Female Waterproof Straight Front Mount for Panel Mount

M9 8pin Female Waterproof Straight Front Mount for Panel Mount

M9 8pin Connector Straight Female Rear Mount for Panel

M9 8pin Connector Straight Female Rear Mount for Panel

M9 8pin Male Assembly Cable Connector

M9 8pin Male Assembly Cable Connector

M9 8Pin Connector Straight Male Assembly Plug

M9 8Pin Connector Straight Male Assembly Plug

Related Categories

Interested with our M9 Connectors? Ask for a FREE quote now!

We will send you FREE quotation or samples before you make decision, no cost, no risk!

Ask For A Quote

M9 Connector Technical Datasheet

Connector Features:

  • M9 connectors available in: 2-8pin
  • Non-removable Contacts
  • Available as loose piece or as pre-made cables
  • Wire Gauge Max. 0.25mm²
  • Cable Diameter Range 3.5-5.5mm

Electrical Characteristics

  • Rated current: 1-4A
  • Contacts resistance: ≤ 5 mΩ
  • Insulation resistance: ≥100 MΩ
  • Rated voltage: 125V

Mechanical Characteristics:

  • Coupling: thread locking
  • Mechanical Operation:> 500 Mating cycles

Environmental Characteristics

  • Ambient temperature: -40°C ~ + 80°C
  • IP rating: IP67

M9 Connector Application

Sensor-and-actuators

Sensor and actuators

Industrial IO connections

Packaging, Labeling Logistic

Pharmaceutical manufacturing

Robotic systems

Industrial camera
