M12 Series connectors

What are the types of M12 Series connectors

What are the types of M12 Series connectors

M12 Series Categories:M12 Field Wireable ConnetorM12 Molded Cable ConnectorM12 Panel ReceptaclesM12 Overmolded CablesM12 Wire HarnessM12 AdaptersM12 Accessories

M12 Series connectors

M12 Series connectors

M12 Connector Products Introduction

  • M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
  • M12 series with IP67/68 rating, provides with 2, 3, 4, 5, 6, 8, 12, 17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.

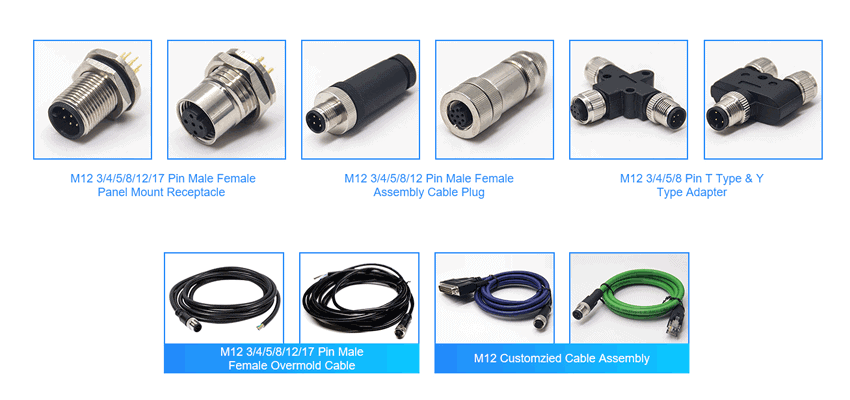

  • We supply full series of M12 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.

M12 Connector Products Feature

  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions and Y Connectors;
  • A, B, C, D, K, L, X, S, T coding available;
  • X-coded support higher bandwidth needs of up to 10 Gb/s;
  • Shield and un-shield Version Available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C.
