M12 Field Wireable Connetor Classification

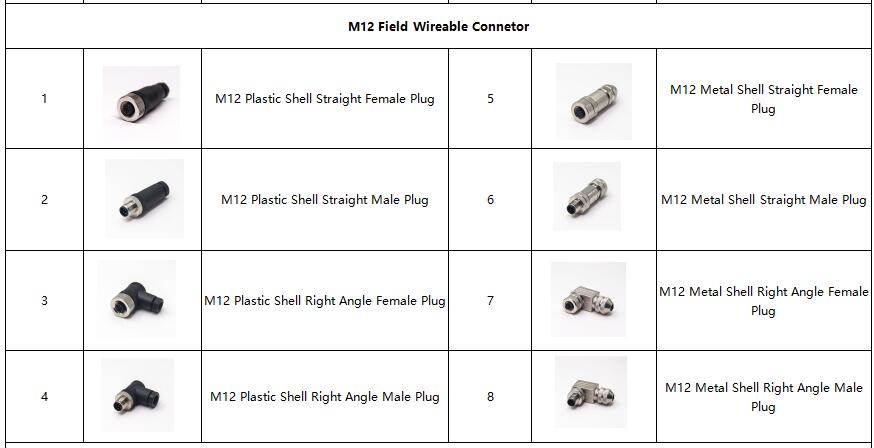

M12 Field Wireable Connetor Classification:M12 Plastic Shell Straight Female Plug、M12 Plastic Shell Straight Male Plug、M12 Plastic Shell Right Angle Female Plug、M12 Plastic Shell Right Angle Male Plug、M12 Metal Shell Straight Female Plug、M12 Metal Shell Straight Male Plug、M12 Metal Shell Right Angle Female Plug、M12 Metal Shell Right Angle Male Plug

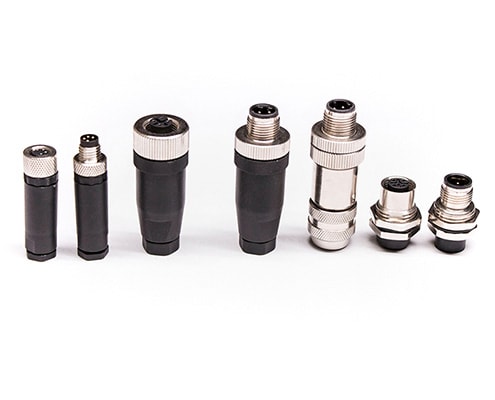

M12 Field Wireable Connetor

M12 Field Wireable Connetor

M12 Field Wireable Connetor

M12 Field Wireable Connetor

M12 Field Wireable Connetor technical parameters

Products Introduction
  • The M12 field wireable connectors are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
  • M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 3, 4, 5, 8, 12 and 17 positions;
  • A, B, D, X coding available;
  • Shield and un-shield Version Available with metal or plastic housing;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C;
  • PG7 type for 4~6mm cable, PG9 type for 6~8mm cable.
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight/Angled
  • Mechanical operation: >500 mating cycles
  • Wire gauge: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68
