M12 Panel Receptacles Connector Classification

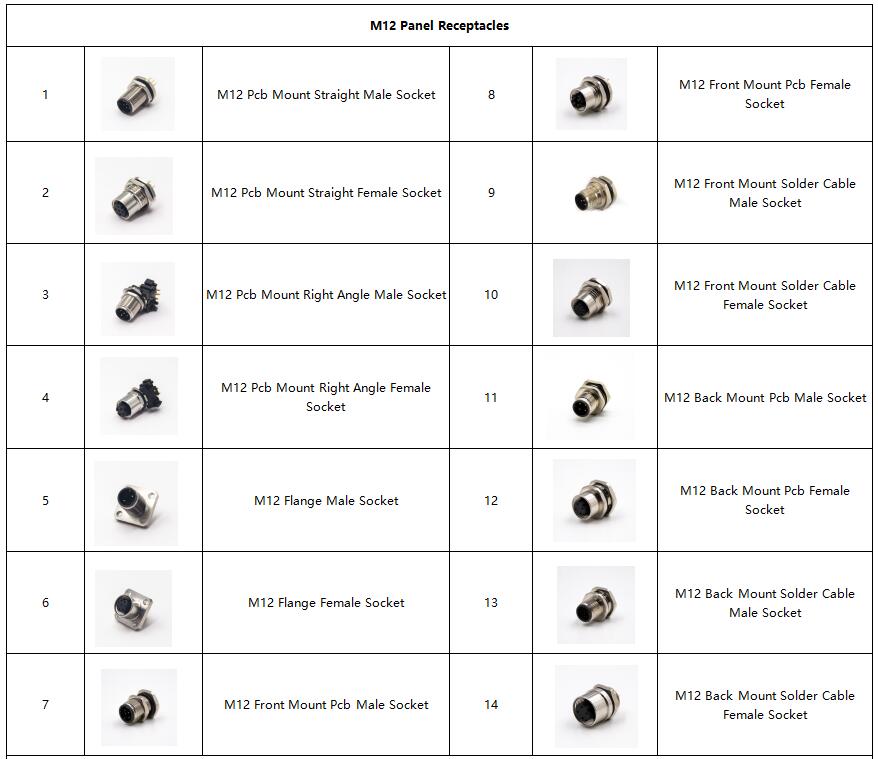

M12 Panel Receptacles Connector Classification: M12 Pcb Mount Straight Male Socket、M12 Pcb Mount Straight Female Socket、M12 Pcb Mount Right Angle Male Socket,M12 Pcb Mount Right Angle Female Socket、M12 Flange Male Socket、M12 Flange Female Socket、M12 Front Mount Pcb Male Socket、M12 Front Mount Pcb Female Socket、M12 Front Mount Solder Cable Male Socket、M12 Front Mount Solder Cable Female Socket、M12 Back Mount Pcb Male Socket、M12 Back Mount Pcb Female Socket、M12 Back Mount Solder Cable Male Socket、M12 Back Mount Solder Cable Female Socket



M12 Panel Receptacles Connector

m12 panel receptacle connector

M12 Panel Receptacles Connector

M12 Panel Receptacles Connector Classification

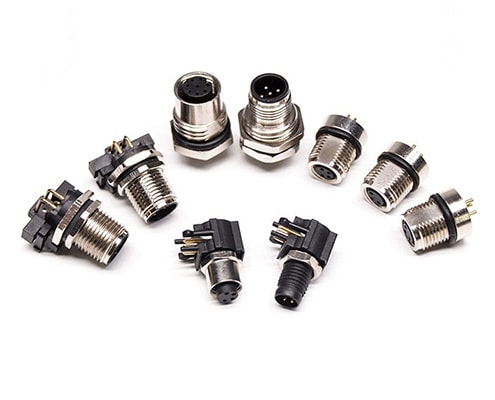

Products Introduction M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;
  • A, B, C, D, K, L, X, S, T coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Alternative mount arrangements for solder cup or PCB;
  • Panel Mount and distribution version available;
  • Available as a loose piece or as a pre-made M12 cables;
Benefits
  • Nickel plated brass
  • High durability, corrosion resistance, oxidation resistance
  • Strong waterproof performance
Application
  • Miniature sensors
  • Industrial camera
  • Electrical bike
  • Packaging, Labeling & Logistic
  • Factory automation and fieldbus module
Material
  • Pin contant: CuZn
  • Socket contact: CuSn
  • Contact plating: Au
Electrical Performance
  • Rated voltage: 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin
  • Rated current: 4A for 3/4/5 pin, 2A for 8pin, 1.5A for 12/17pin
  • Insulation resistance: ≥100 MΩ
  • Contact resistance: <10 MΩ
  • Standard: IEC 61076-2-101
Mechanical Performance
  • Coupling method: threaded connection
  • Direction: Straight/Angled
  • Mechanical operation: >500 mating cycles
  • Wire gauge for solder cable type: 0.14/0.25/0.34/0.5mm²/(26/24/22/20AWG)
Environmental Performance
  • Temperature range: -25°C ~ + 85°C
  • Protection degree: IP67/IP68
