M12 Accessories

M12 Accessories Classification

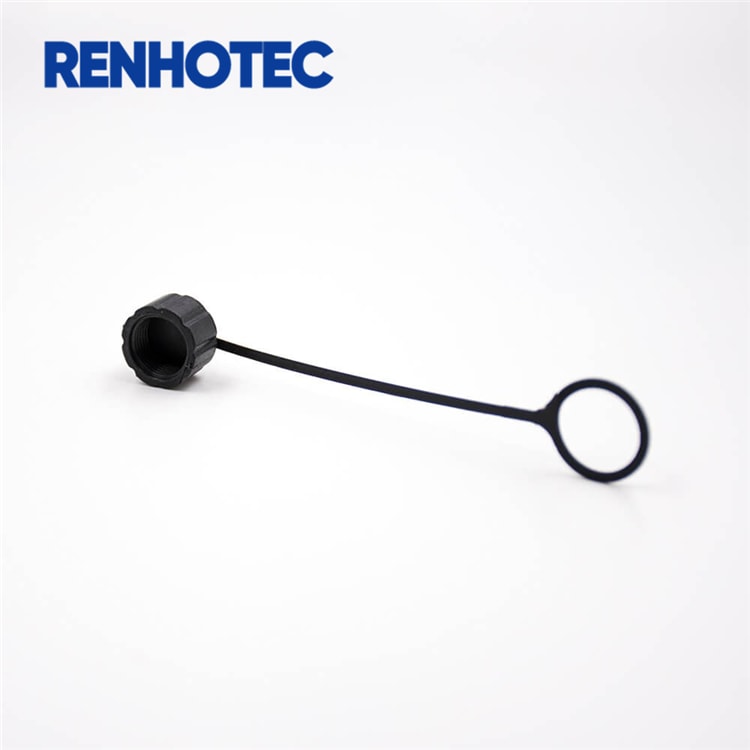

M12 Accessories Classification: M12 Male Dust Cover with Chain、 M12 Female Dust Cover with Chain、 M12 Male Dust Cover、 M12 Female Dust Cover、M12 Nuts

M12 Accessories

M12 Accessories

M12 circular connector Technical parameter

Products Introduction
  • M12 circular connector is designed for washdown and corrosive environments, primarily used in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus.
  • M12 series with IP67/68 rating, provides with 2, 3, 4, 5, 6, 8, 12, 17 contacts, different pin match specific applications. E.g, sensor and power applications require 3 or 4 pins; Profinet and ethernet require 4 or 8 pin counts; Fieldbus, CAN bus and DeviceNet typically use 4 or 5 pin counts; and signal requirements usually employ 12 pins.
  • We supply full series of M12 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.
Products Feature
  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 2, 3, 4, 5, 6, 8,12 and 17 positions and Y Connectors;
  • A, B, C, D, K, L, X, S, T coding available;
  • X-coded support higher bandwidth needs of up to 10 Gb/s;
  • Shield and un-shield Version Available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C.
