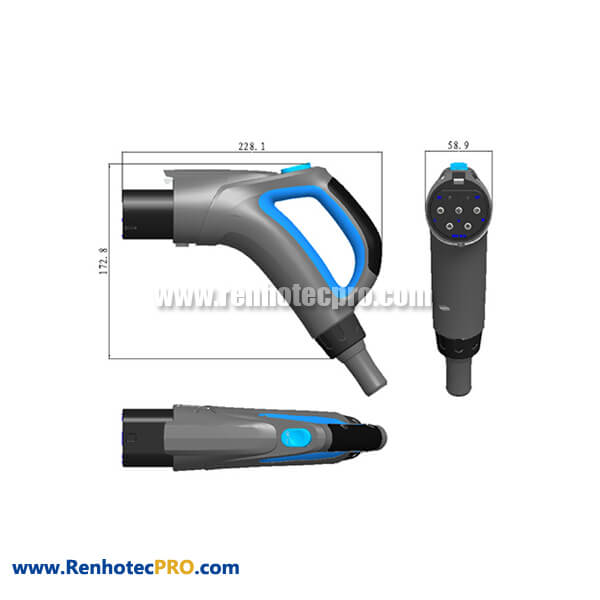

Power Supply for Electric Car High Performance NDQ AC Charging Connector

Tags:NDQ  Electric Car, New Energy, GB/T20234-2015, AC Charging Connector, EV Connector, Power Supply Plug

  • Products complies with GB/T20234-2015 standard;

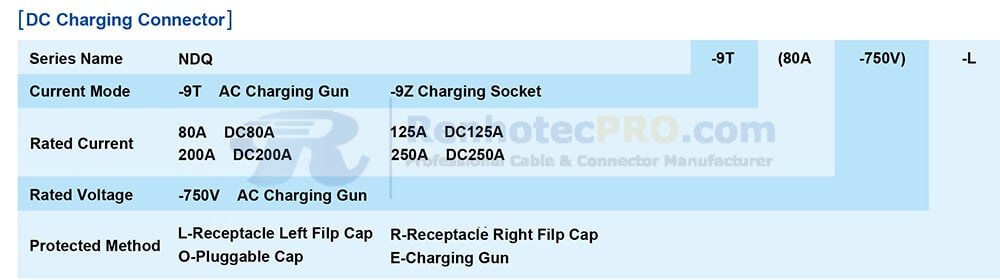

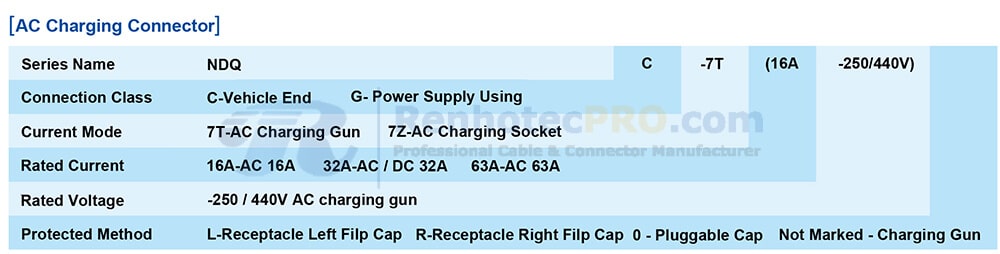

  • Current Rating include: (AC: 10A, 16A, 32A, 63A / DC: 80A, 125A, 200A, 250A)
  • Design and development combined with ergonomics, small size with beautiful appearance. Good security and easy to operate.
  • Excellent electrical performance, with electronic locking, temperature sensing function.
  • The plug and socket termination type is wire crimping.
  • Degree of protection: IP54(with protective cap), IP55(Gun Assembly)


Used for connection between the high voltage cables inside the electric vehicle.


For vehicle charging system using, such as vehicle charger, DC charger, AC charger,etc.

Main Technical Specification:

——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: copper alloy

Environmental Performance:
——Operating temperature:-30℃~+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)

Electrical Performance:

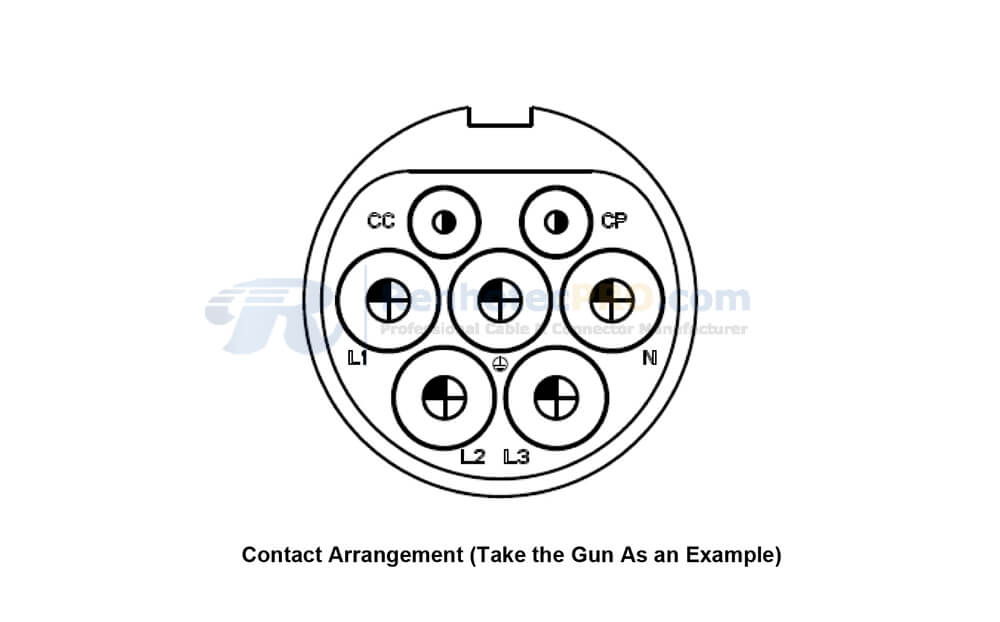

——Rating current and contact resistance:

Contact size


Contact resistance Rating current


Applicable wire
12 0.25 125 50
250 70
6 0.5 32 6
16 2.5
3 0.75 2 0.5

——Rating voltage:250/440V AC, 750V DC
——Insulation resistance: ≥1000MΩ( AC charging connector); ≥2000MΩ(DC charging connector)

Mechanical Performance:
Durability: exceed 10,000 times (Non-charged state)
