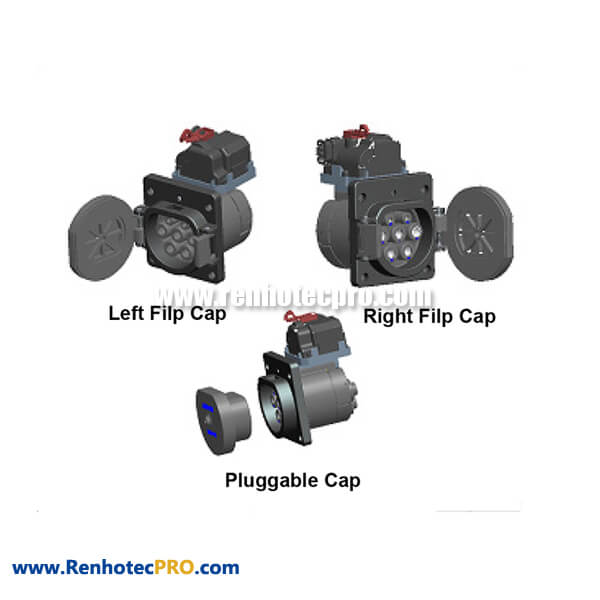

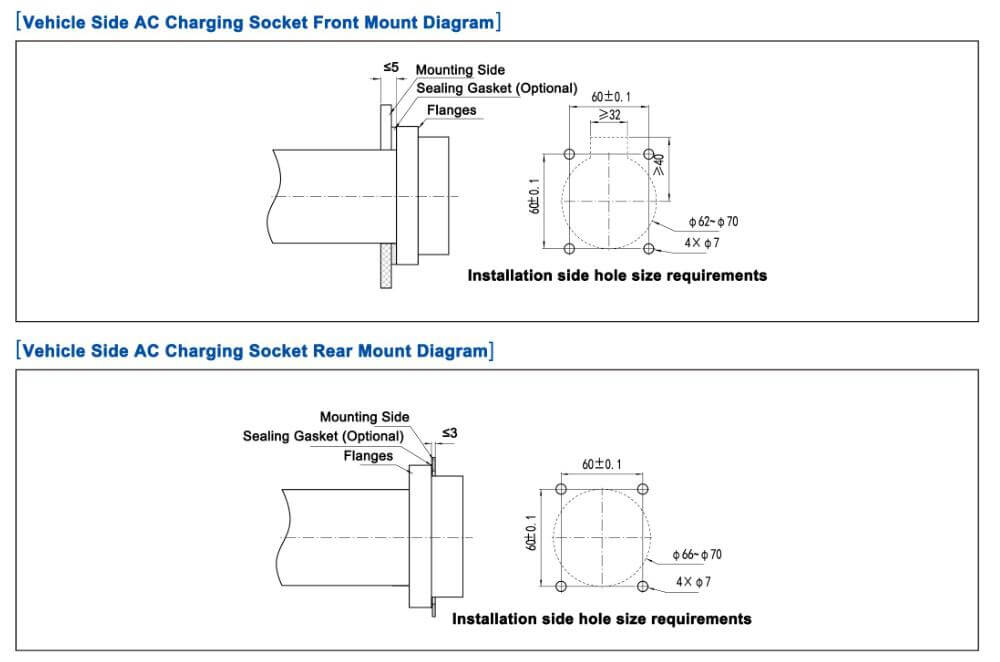

Electric Car Charging Sockets AC Vehicle NDQ High Qulaity Connector

12

Tags：NDQ  Electric Car, New Energy, GB/T20234-2015, AC Charging Connector, EV Connector, Vehicle End Socket

Features:
  • Products complies with GB/T20234-2015 standard;
  • Current Rating include: (AC: 10A, 16A, 32A, 63A / DC: 80A, 125A, 200A, 250A)
  • Design and development combined with ergonomics, small size with beautiful appearance. Good security and easy to operate.

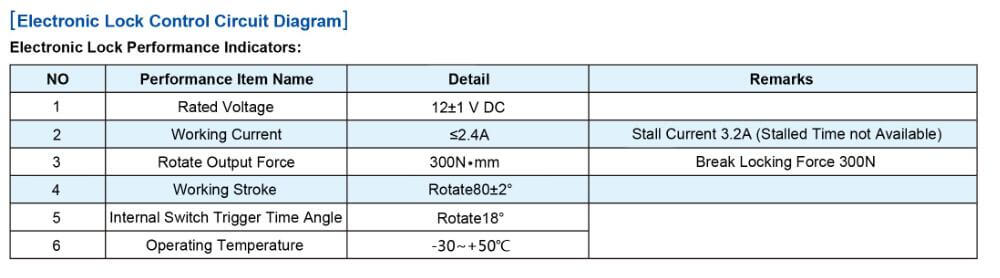

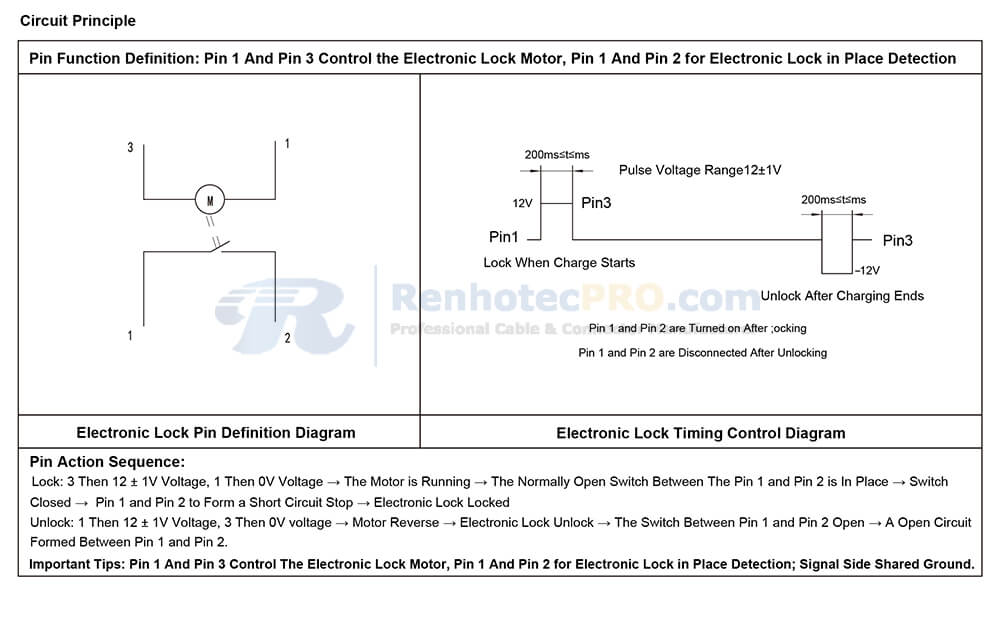

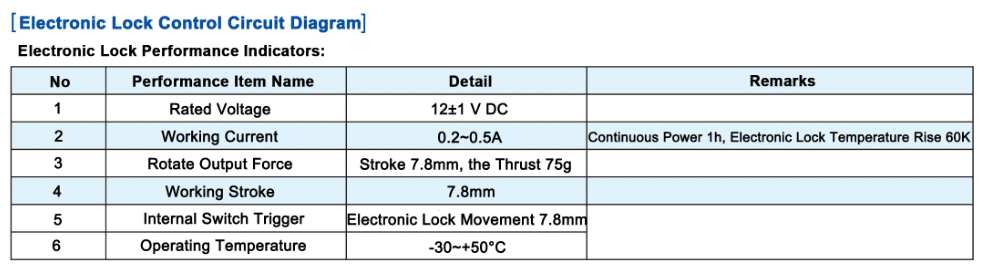

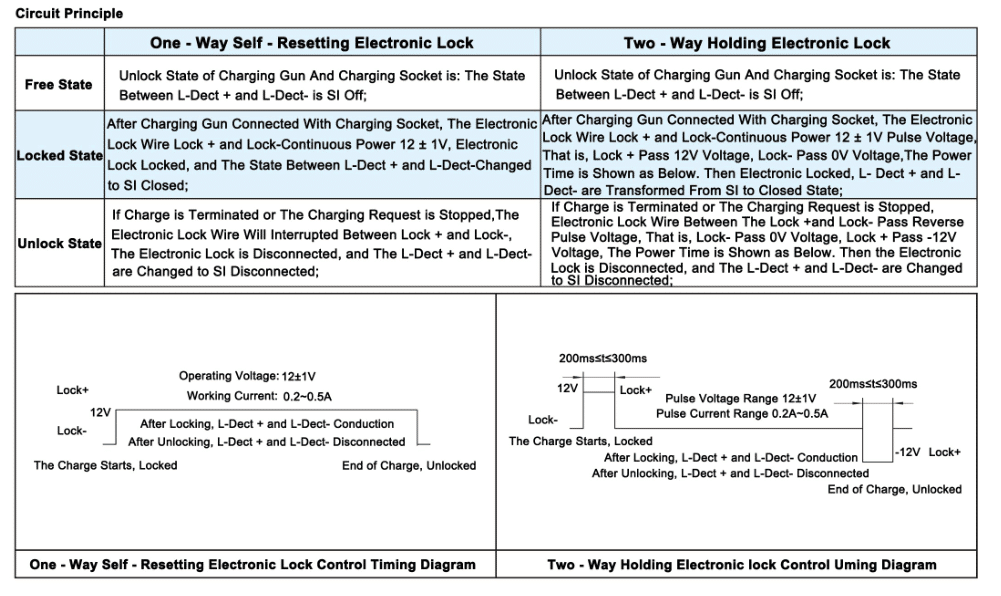

  • Excellent electrical performance, with electronic locking, temperature sensing function.
  • The plug and socket termination type is wire crimping.
  • Degree of protection: IP54(with protective cap), IP55(Gun Assembly)
ASK A FREE QUOTE

Usage:

Used for connection between the high voltage cables inside the electric vehicle.

Application:

For vehicle charging system using, such as vehicle charger, DC charger, AC charger,etc.

Main Technical Specification:

Material:
——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: copper alloy

Environmental Performance:
——Operating temperature:-30℃～+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)

Electrical Performance:
——Rating current and contact resistance:

Contact size

mm

 Contact resistance Rating current

A

 Applicable wire
mΩ mm2
12 0.25 125 50
250 70
6 0.5 32 6
16 2.5
3 0.75 2 0.5

——Rating voltage:250/440V AC, 750V DC
——Insulation resistance: ≥1000MΩ( AC charging connector); ≥2000MΩ（DC charging connector)

Mechanical Performance:
Durability: exceed 10,000 times (Non-charged state)

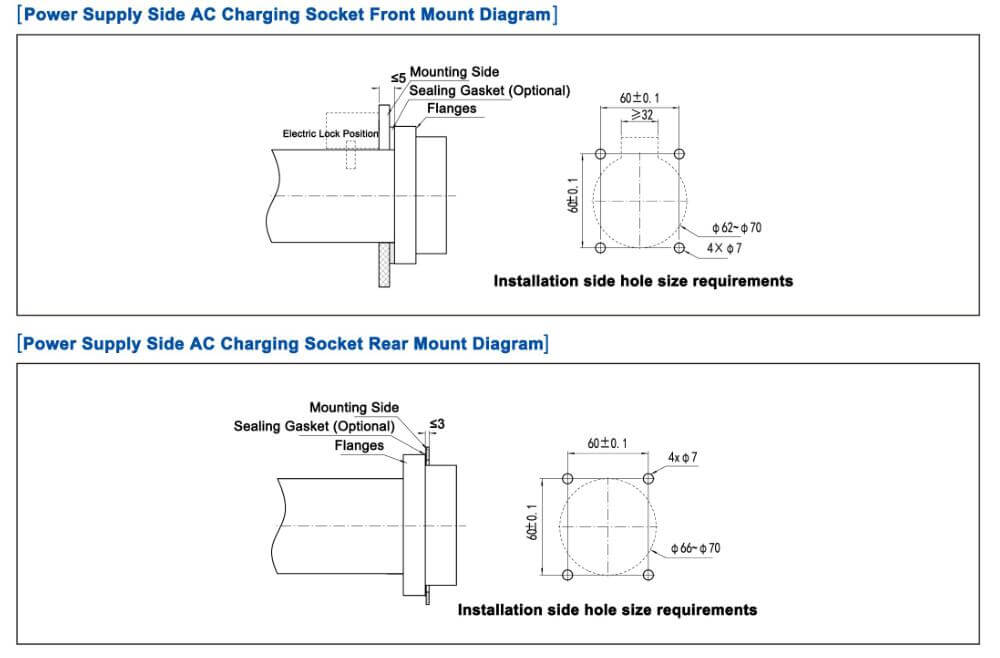

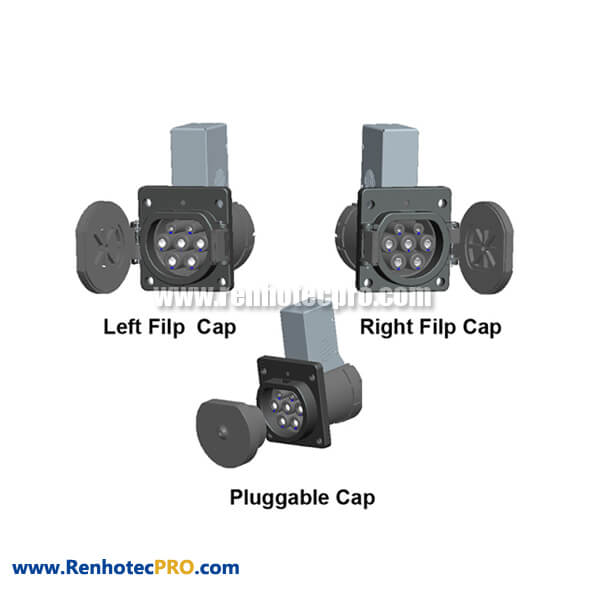

Electric Power Supply Socket AC NDQ Connector for Electric Car

12

Tags：NDQ  Electric Car, New Energy, GB/T20234-2015, AC Charging Connector, EV Connector, Power Supply Socket

Features:
  • Products complies with GB/T20234-2015 standard;
  • Current Rating include: (AC: 10A, 16A, 32A, 63A / DC: 80A, 125A, 200A, 250A)
  • Design and development combined with ergonomics, small size with beautiful appearance. Good security and easy to operate.
  • Excellent electrical performance, with electronic locking, temperature sensing function.
  • The plug and socket termination type is wire crimping.
  • Degree of protection: IP54(with protective cap), IP55(Gun Assembly)
ASK A FREE QUOTE

Usage:

Used for connection between the high voltage cables inside the electric vehicle.

Application:

For vehicle charging system using, such as vehicle charger, DC charger, AC charger,etc.

Main Technical Specification:

Material:
——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: copper alloy

Environmental Performance:
——Operating temperature:-30℃～+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)

Electrical Performance:
——Rating current and contact resistance:

Contact size

mm

 Contact resistance Rating current

A

 Applicable wire
mΩ mm2
12 0.25 125 50
250 70
6 0.5 32 6
16 2.5
3 0.75 2 0.5

——Rating voltage:250/440V AC, 750V DC
——Insulation resistance: ≥1000MΩ( AC charging connector); ≥2000MΩ（DC charging connector)

Mechanical Performance:
Durability: exceed 10,000 times (Non-charged state)
