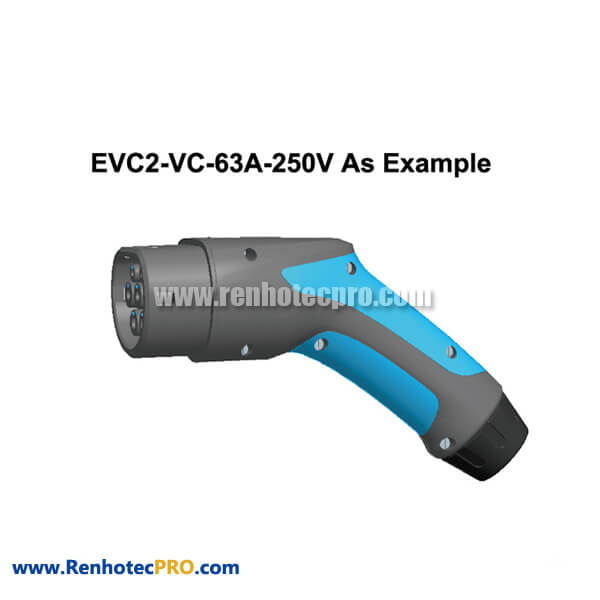

EV Charging Stations Plug New Energy Connector EVC2 Vehicle End Plug

EV Charging Stations Plug New Energy Connector EVC2 Vehicle End Plug

Tags:EVC  Electric Car, New Energy, IEC62196,  EV Connector, IP55, Type 2 Vehicle End Charging Plug, VC,  63A, 240V

  • Products complies with IEC 62196 standard;
  • Various types for choice, include type 1 AC charging connector
    (according to SAE J1775 and IEC 62196), Type2 DC Charging Connector
    (according to IEC62196), Type2 AC charging connector (according to IEC 62196)
  • Humanized design with a good grasp feel, easy to use.
  • Various accessories available, protection cap include damping cap, metal string cap,etc.
  • The plug and socket termination type is wire crimping.
  • Degree of protection: IP55


Used to connect the electric car and power supply equipment, and then charge the electric car.

Main Technical Specification:

——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: Base material Copper alloy The contact surface is silver plated

Environmental Performance:
——Operating temperature:-30℃~+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)

Electrical Performance:

Contact Specification mm Rated Voltage V Rated Current A Rated Voltage V AC Applicable Wire mm²
φ6 16 Single Phase 2.5
Three Phases
32 Single Phase 6
Three Phases
63 Single Phase 16
φ3 2 Single Phase/Three Phases 0.5

——Insulation resistance: ≥1000MΩ( AC charging connector);

Mechanical Performance:
Exceed 10,000 times (Non-charged state)
