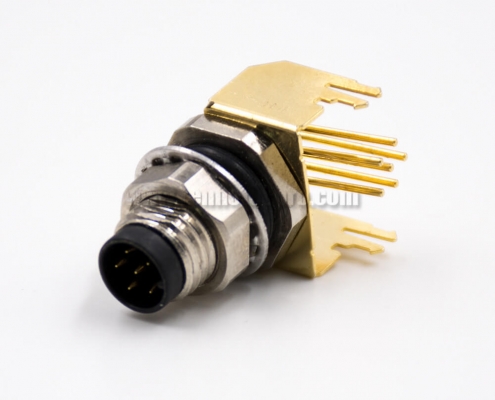

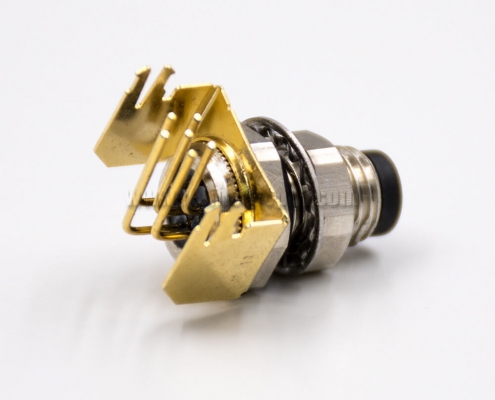

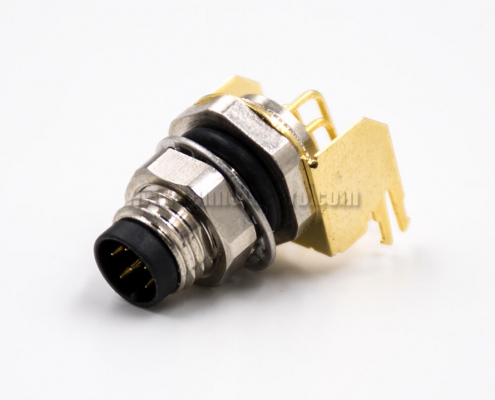

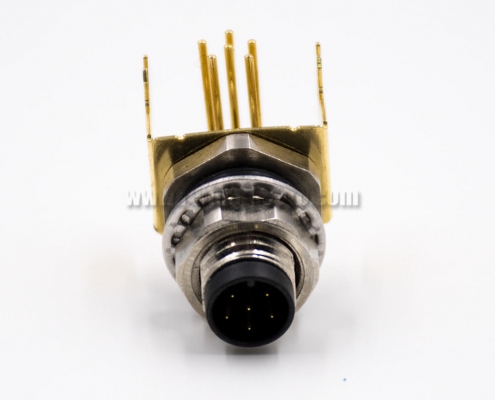

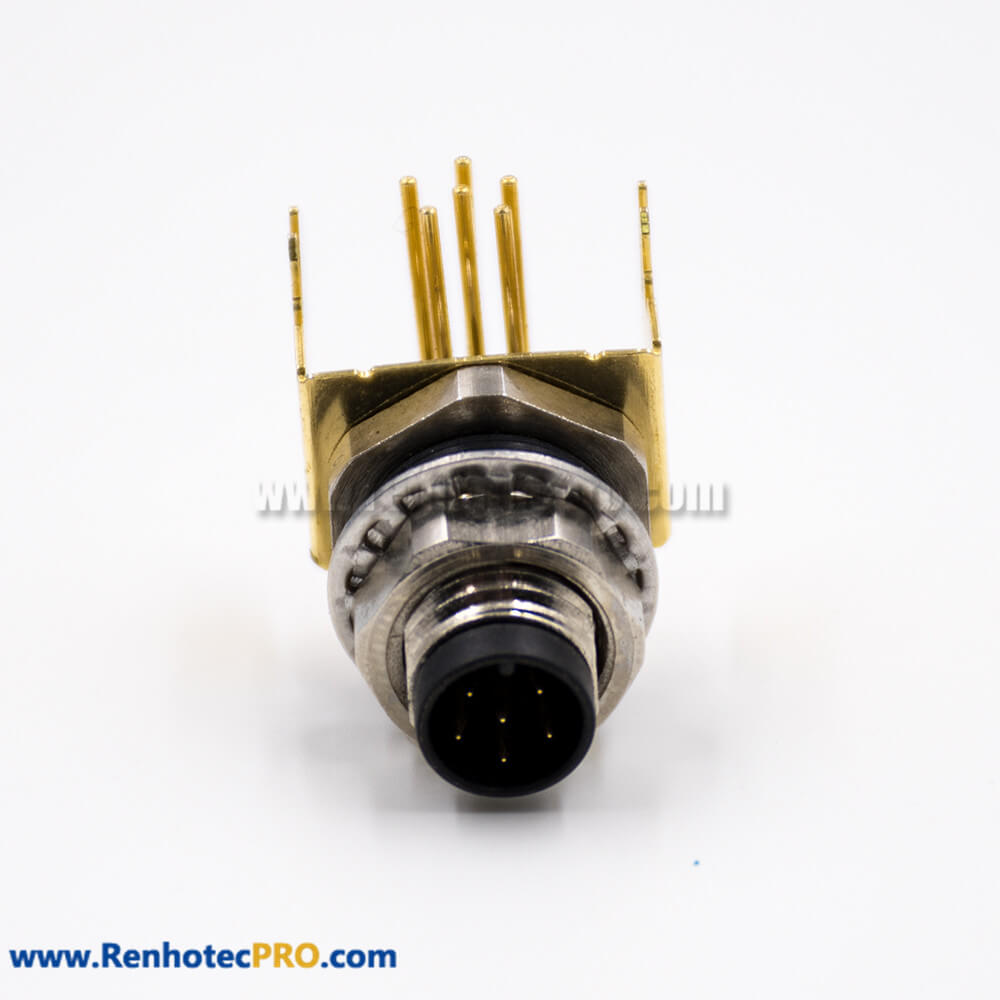

Right Angle M8 Connectors 6Pin A-Coding Panel Receptacles Male Through Hole Front Mount Waterproof

Right Angle M8 Connectors 6Pin A-Coding Panel Receptacles Male Through Hole Front Mount Waterproof
Right Angle M8 Connectors 6Pin A-Coding Panel Receptacles Male Through Hole Front Mount Waterproof Right Angle M8 Connectors 6Pin A-Coding Panel Receptacles Male Through Hole Front Mount Waterproof Right Angle M8 Connectors 6Pin A-Coding Panel Receptacles Male Through Hole Front Mount Waterproof Right Angle M8 Connectors 6Pin A-Coding Panel Receptacles Male Through Hole Front Mount Waterproof

Part No.: M8-06-A-P-1-R-F

Tags：M8,6pin,A-Coding,panel receptacles,male,Waterproof,right angle,pcb mount,front mount

Features:
  • M8*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 3、4、5、6、8 positions;
  • A, B coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Alternative mount arrangements for solder cup or PCB；
  • Panel Mount and distribution version available；
  • Available as a loose piece or as a pre-made M8 cables；
  • Small MOQ(minimal order quantity) to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM order to meet your customized requirement.
Get A Free Quote

Please click BUY NOW button for quantity under 100pcs and order from our online store. For more quantity, please send us message to get FREE quote.

Material
Pin contant CuZn
Socket contact CuSn
Contact plating Au
Electrical Performance
Rated voltage 60V for 3/4/5/6 pin, 30V for 8 pin
Rated current 4A for 3/4/5 pin, 2A for 6 pin, 1.5A for 8 pin
Insulation resistance ≥100 MΩ
Contact resistance ＜10 MΩ
Standard IEC 61076-2-101
Mechanical Performance
Coupling method threaded connection
Direction Straight/Angled
Mechanical operation ＞500 mating cycles
Wire gauge 0.14/0.25/0.34mm²/(26/24/22AWG)
Environmental Performance
Temperature range -25°C ~ + 85°C
Protection degree IP67/IP68
