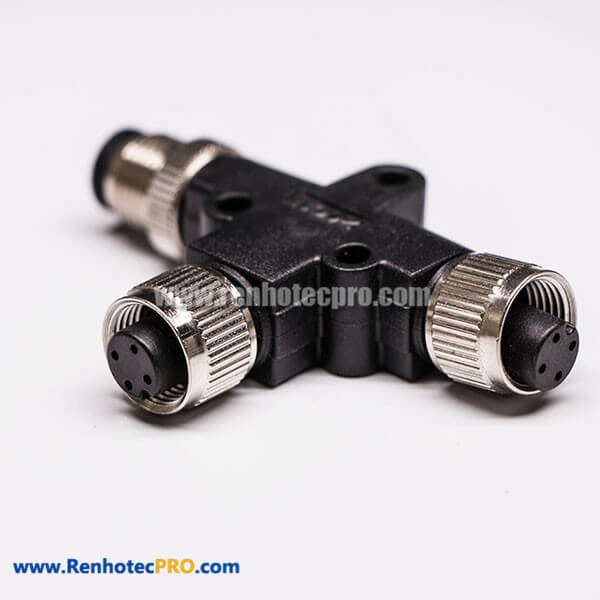

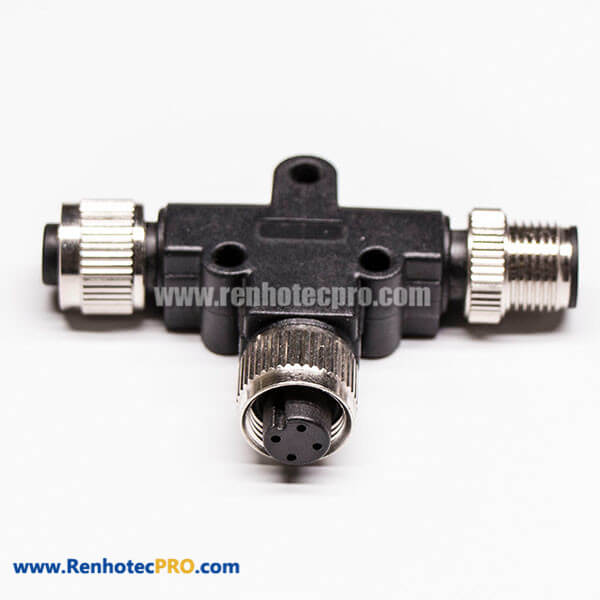

M12 4 pin A-coding T-type Splitter Adapter Male to Female

Tags:M12 T-type splitter, 4pin, A-coding,Male to female

  • M12*1 thread locking mechanism, anti-vibration locking design;
  • Easy quick connect and disconnect coupling;
  • Pin configurations: 4, 5, 8 and 12 positions;
  • A, B, D coding available;
  • Meets IP67/IP68 waterproof requirements;
  • Small MOQ(minimal order quantity) to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM order to meet your customized requirement;

Please click BUY NOW button for quantity under 100pcs and order from our online store. For more quantity, please send us message to get FREE quote.

Pin contant CuZn
Socket contact CuSn
Contact plating Au
Electrical Performance
Rated voltage 250V for 4 pin, 60V for 5pin, 30V for 8/12pin
Rated current 4A for 4/5pin, 2A for 8pin, 1.5A for 12pin
Insulation resistance ≥100 MΩ
Contact resistance <10 MΩ
Standard IEC 61076-2-101
Mechanical Performance
Coupling method threaded connection
Direction Straight/Angled
Mechanical operation >500 mating cycles
Environmental Performance
Temperature range -25°C ~ + 85°C
Protection degree IP67/IP68
