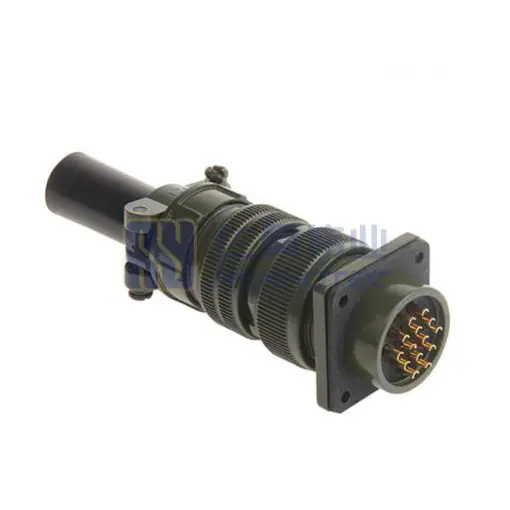

MS3106A20-27S 20-27 Insert Arrangement 20 Shell Size 14 Contacts Threaded Coupling Solder Termination Connector

Tags:MS3106A20-27S Connector,Plug,Straight,Metal Circular,Size 20, 14#16 Solder Socket Contact

Features:
  • Meduim to heavy weight cylindrical;
  • Durable,field-proven design;
  • Environmental resistant;
  • Resilient inserts;
  • Operating voltage to 3000 VAC(RMS) at sea level;
  • Threaded couplings

Please click BUY NOW button for quantity under 100pcs and order from our online store.
For more quantity, please send us message to get FREE quote.

Main Technical Specification:

Material:
——Shell: Aluminum alloy, Olive drab chromate
——Contact: Brass with gold plated
——Insulator: Synthetic Rubber

Environmental Performance:
——Temprature Range:  -55°C ~ +125°C

Electrical Performance:
——Insulation resistance: 5,000 Mega ohms minimum (at 25°C)
——Frequency Range: 10-2000Hz/147m/s2
——Voltage Rating: 500VAC 700VDC

Mechanical Performance:
——Mating Type: threaded coupling
——Termination : Solder
——Durability(mating) ≧ 500 cycles
