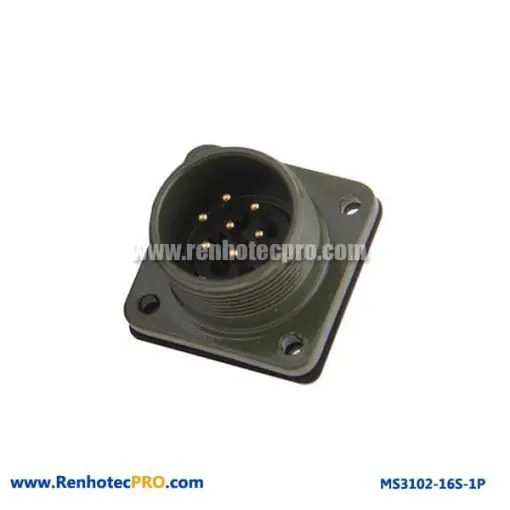

MS 5015 Connector 7 Pin Straight 4 Hole Flange Mount MS3102

MS 5015 Connector 7 Pin Straight 4 Hole Flange Mount MS3102

Part No.: MS3102A16S-1P

Tags:MS 5015,MS3102,Flange Mount,4Hole,7Pin

Material:Aluminum Alloy/Brass/Stainless Steel/Synthetic Rubber/Bakelite

  • Made according to the MS-C-5015 Standard for industrial application.
  • Thread coupling and bayonet coupling connect technique for high stability and easy connection.
  • Reliable performance with highpower carrying capacity, inherent ruggedness and capacity to withstand extreme harsh environment.
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Please click BUY NOW button for quantity under 100pcs and order from our online store.
For more quantity, please send us message to get FREE quote.

Insulation Resistance ≧5000MΩ
Normal Temperature 25°C
Ambient Temperature -55°C – 125°C
Relative humidity 95+ -4% at 40°C
Frequency 10~2000 Hz147 m/s²
Shock 490 m/s²
Withstanding voltage 2000V
Service Life/Durability ≧500 Insertation and Extraction
Dielectric Strength 2KV
Working Voltage AC 500V  DC 700V
Payment Term
Place of Origin Shenzhen, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union
Delivery Term
Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Shenzhen Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
Material & Finish
Material & Finish
Parts Material Finish
Shell Aluminum Alloy/Brass/Stainless Steel Electrophoresis Army green cadmium/
galvanization(White)/ passivation
Terminals/Contacts Brass Gold/Silver Plated
Insulator Synthetic Rubber/Bakelite
Processing Technology
Aluminum Alloy die-casting
Copper alloy  turning operation
Stainless steel  turning operation
Production Flow
Raw Material → Die Casting/Turning Operation → Surface Treatment → Assembly
How to Order


ms 5015 pin
