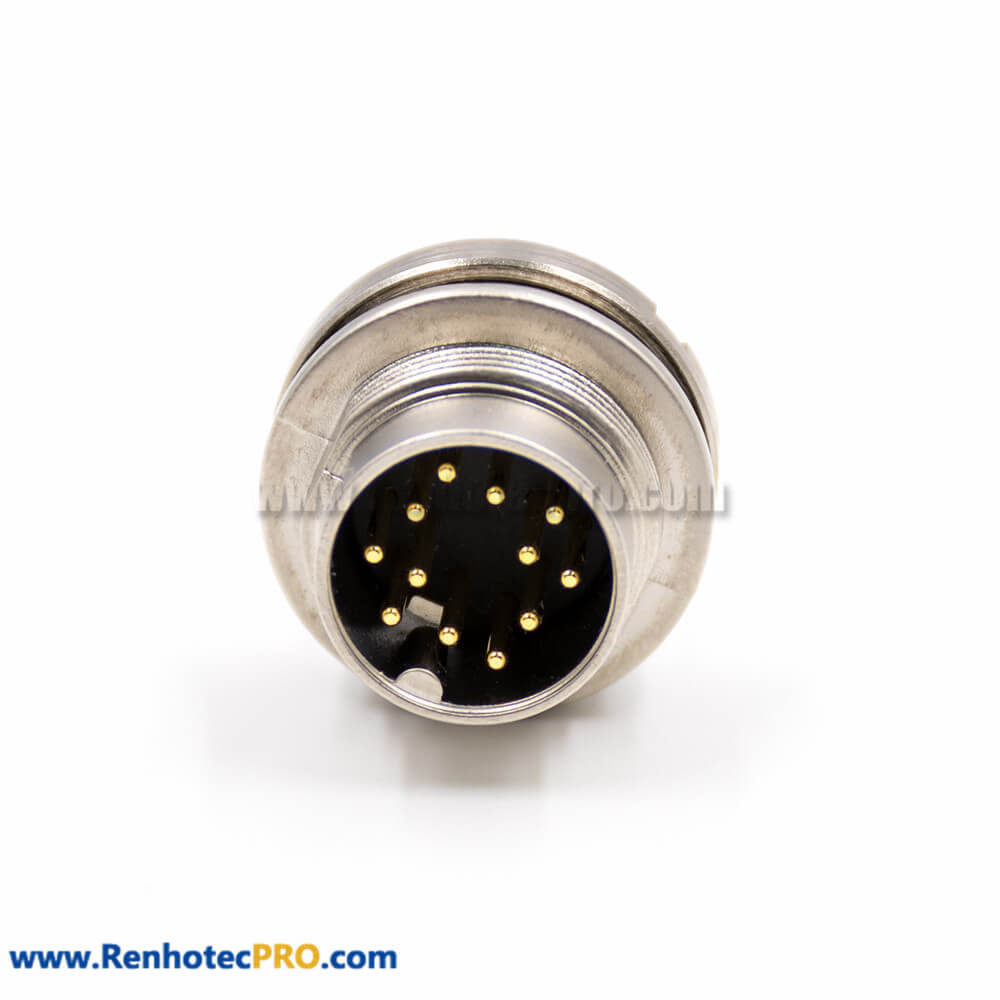

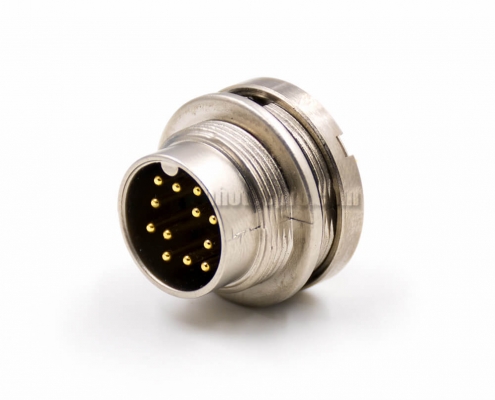

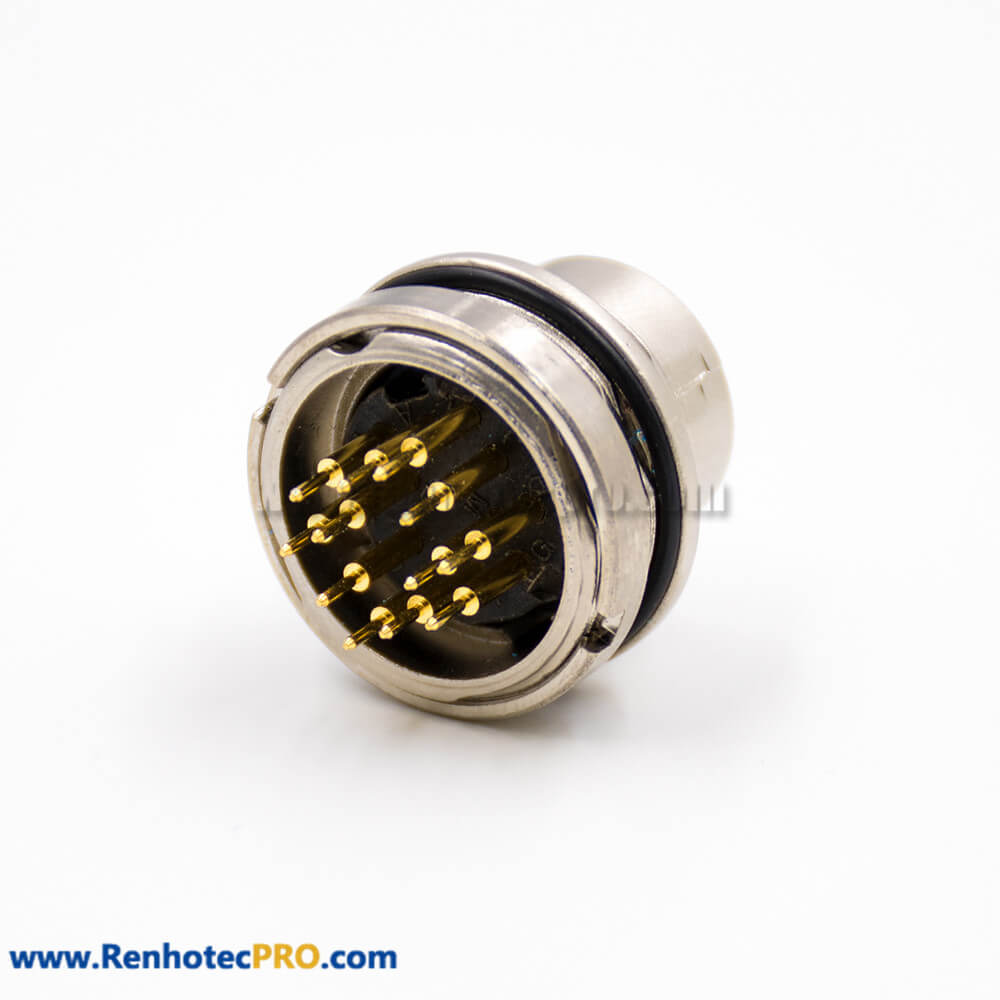

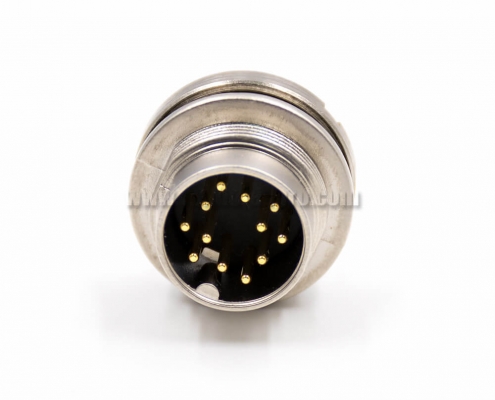

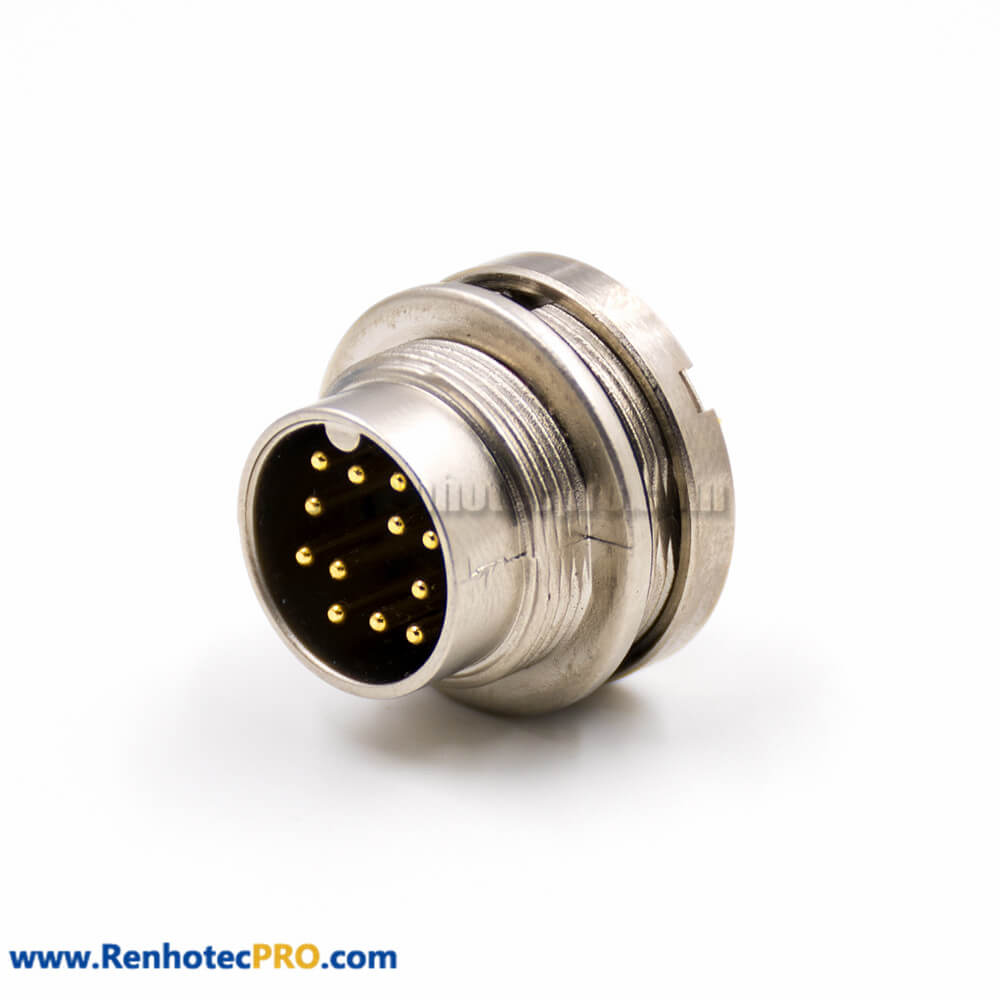

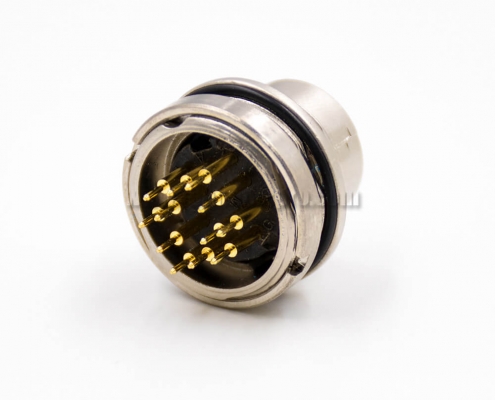

M16 12 Pin Connector Male A Coded 180 Degree Panel Receptacles Solder PCB Connector

M16 12 Pin Connector Male A Coded 180 Degree Panel Receptacles Solder PCB Connector
M16 12 Pin Connector Male A Coded 180 Degree Panel Receptacles Solder PCB Connector M16 12 Pin Connector Male A Coded 180 Degree Panel Receptacles Solder PCB Connector M16 12 Pin Connector Male A Coded 180 Degree Panel Receptacles Solder PCB Connector

RHT：M16-12-A-P-1-S-B

Tags：M16 Panel Receptacle Hex Flange, 12pin, Male, Straight, PCB Mount, PCB Mount, Back Mount, M16*0.75

Features:
  • Extremely strong resistant to acid, alkali, chemical cleaning agent / reagent properties;
  • Resistant to welding spark, continually twist;
  • Resistant to oil, coolant, lubricant and emulsion;
  • Pin configurations: 3、4、5、6、7、8、12、14、19、24 positions；
  • Meets IP67/IP68 waterproof requirements;
  • Temperature Range: -25°C ~ + 85°C ;
  • Alternative mount arrangements for solder cup or PCB；
  • Panel Mount and distribution version available；
  • Available as a loose piece or as a pre-made M16 cables；
  • Small MOQ(minimal order quantity) to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM order to meet your customized requirement.
Get A Free Quote

Please click BUY NOW button for quantity under 100pcs and order from our online store. For more quantity, please send us message to get FREE quote.

Material
Pin contant CuZn
Socket contact CuSn
Contact plating Au
Electrical Performance
Rated voltage 250V for 2/3/4/5 pin, 60V for 5/6/7/8/12/14/19/24
Rated current 7A for 2/3 pin, 6A for 4/5 pin, 3A for 12/14/19 pin, 1A for 24pin
Insulation resistance ≥100 MΩ
Contact resistance 2/3/4/5/6/7/8 pin＜5 MΩ, 12/14/19/24 pin＜3 MΩ
Standard IEC 61076-2-101
Mechanical Performance
Coupling method threaded connection
Direction Straight/Angled
Mechanical operation ＞500 mating cycles
Wire gauge max. 0.75mm²/(max. 20AWG) for 2/3/4/5/6/7/8 pin, max. 0.25mm²/(max. 24AWG) for 12/14/19 pin, 0.14mm²(26AWG) for 24 pin
Environmental Performance
Temperature range -25°C ~ + 85°C
Protection degree IP67/IP68
