Renhotec provide HVIL 40A series connectors which have similar model and quality with top brands in the world. More competitive and reasonable FACTORY price to meet your need.Applications include electrical vehicle (EV) batteries, inverters, junction boxes, and power distribution boxes.

  • With multiple latching options and IP67 rating.
  • Over-molded cable and panel-mount receptacles are available in various styles and mounting methods.
  • Many standard products available: In-line, right-angle, panel-mount and oil-tight solutions are available with standard wire configurations

Related Categories

Interested with our HVIL 40A Connectors? Ask for a FREE quote now!

We will send you FREE quotation or samples before you make decision, no cost, no risk!

HVIL 40A Series Connector Technical Datasheet

Feature
  • Applicable to inside of electric vehicles for high pressure, shioldingand sealed connection.
  • With 360 shielding.
  • The product has a signal loop that can achieve short circuit.
  • Straight push-pull shrapnel locking structure and handle push-pull locking structure for choice.
  • With secondary locking function to prevent accidental disconnection caused by incorrect operation.
  • Shell made by plastic, which is lihtweight and more security in using.
  • A variety of key positions for intalltion identfication and insert recognition.
  • Meet the IP67 protection rating.
  • Mplementation of the standard: Q 1 21EJ1799.
Application
  • Products used for high-voltage connection of car charger, battery pack, high voltage distribution air conditioning, PTC,battery, etc. can also be used for short circuit control.
  • Used for connoction betwoon tho high voltago cablos insido the oloctric vehicle.

Mechanical Performance
——Contact, Shield: Copper
——Insulator: Engineering Plastics
——Sealing Ring: Rubber Material
——Vibration: Meet the Requirements of QC IT413
——Impact: Meet the Requirements of QC 1T413
——Durability: 500 Times

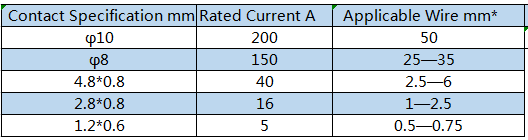

——Contact Resistance and Rated Current

Note: The product rated current is related to the connected wire.

Environmental Performance
——Operating Temperature: 40℃+125℃
——Relative Humidity : 95% at40℃
——Degree of Protection: IP67
——Environmental Resistance Performance: 48 Hours
-——Rated Current, Withstand Voltage and Insulation Resistance

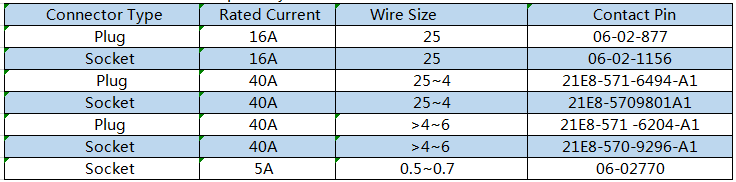

Contact Pins to Be Ordered Separately

Note: The number of separately ordered contact pin should be decided according to the related product contacts’ number
