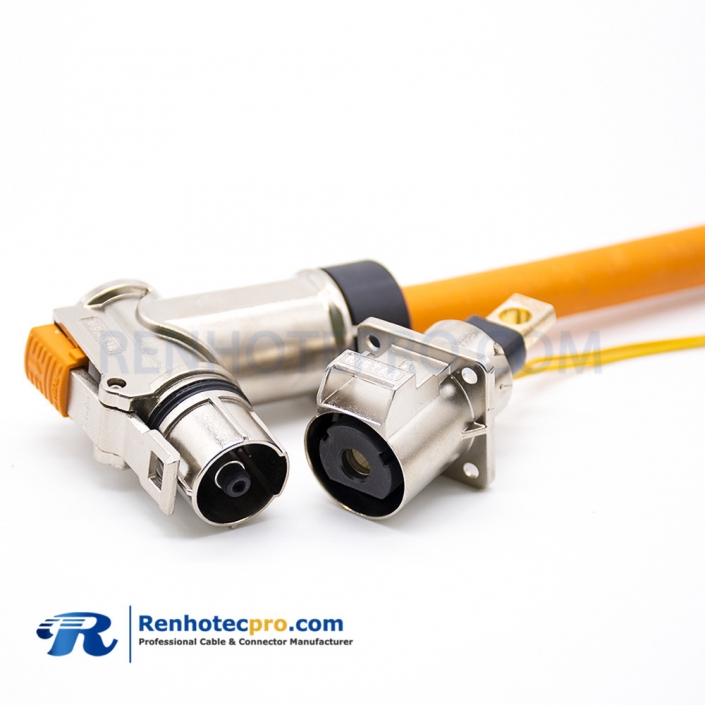

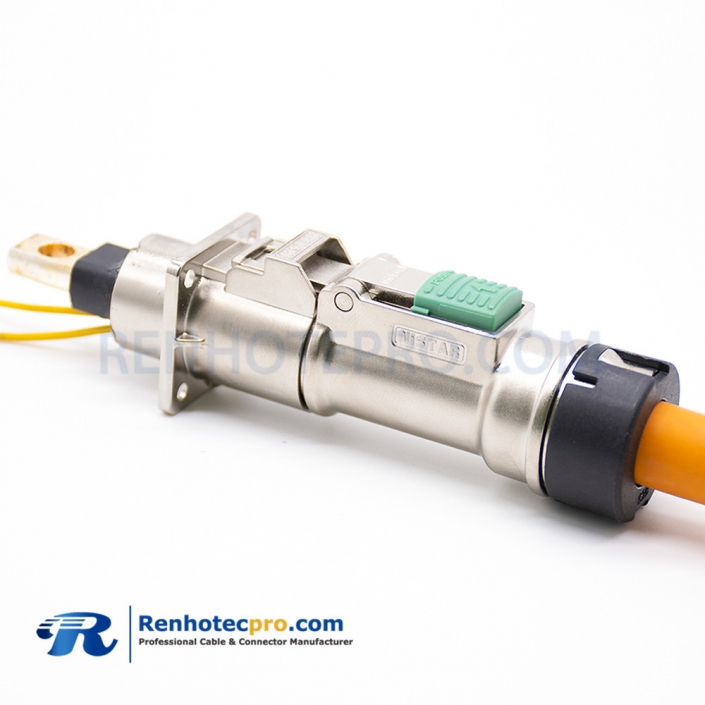

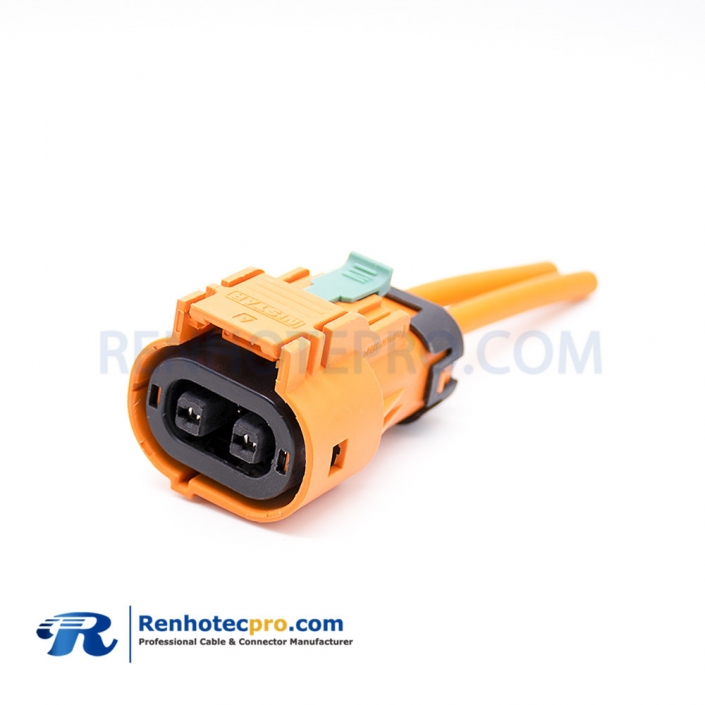

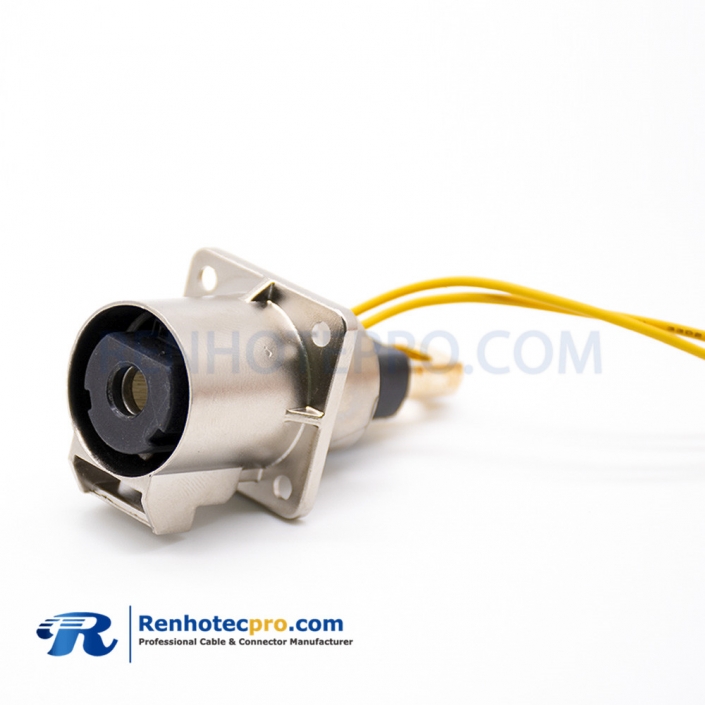

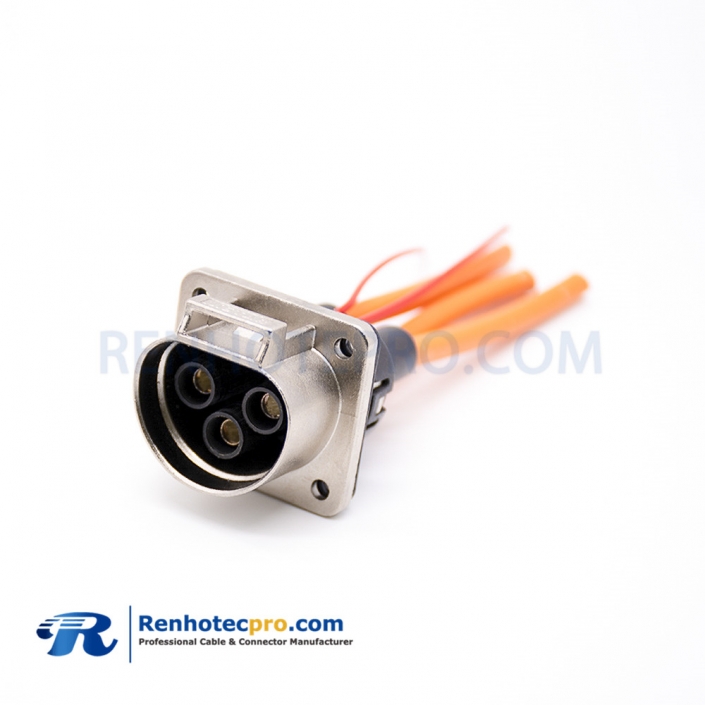

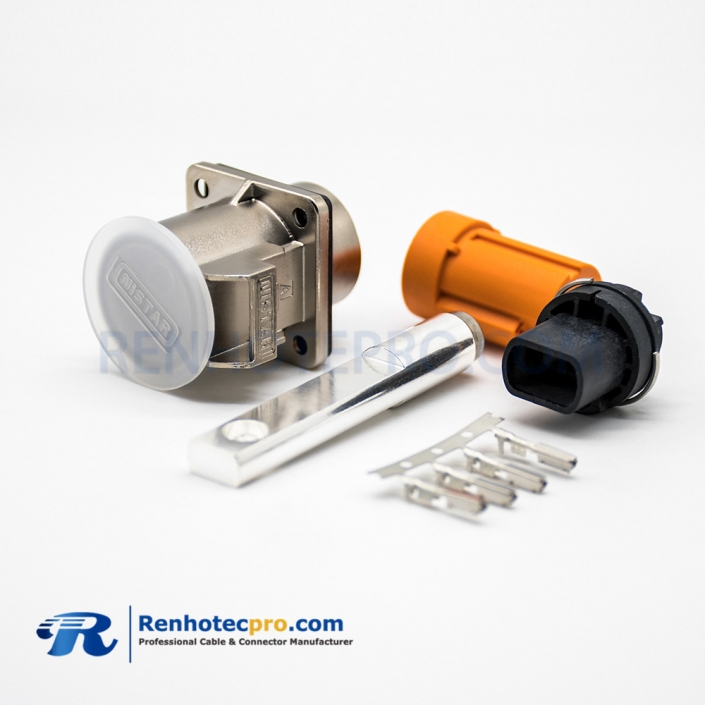

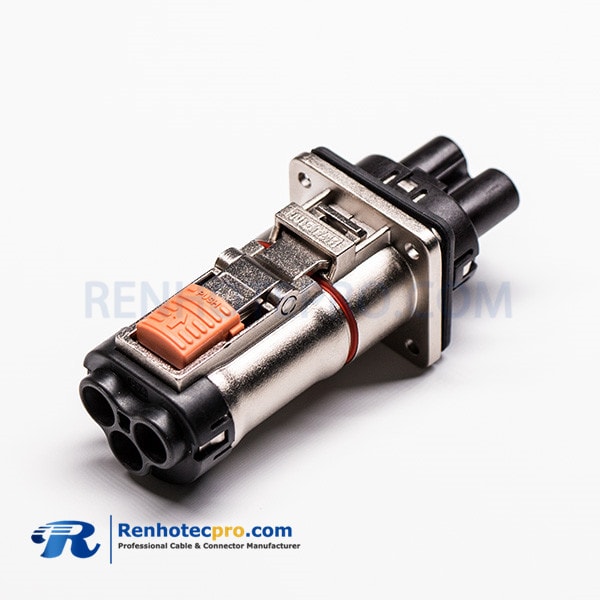

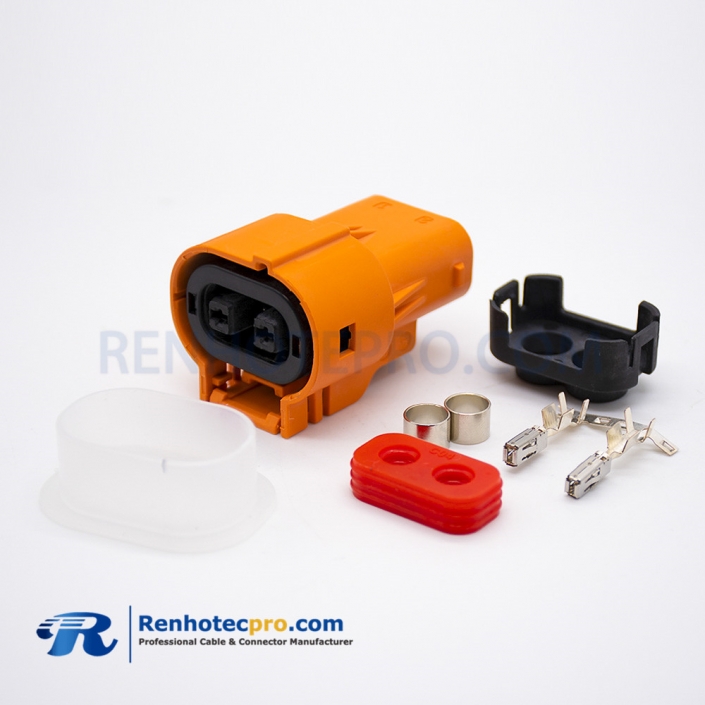

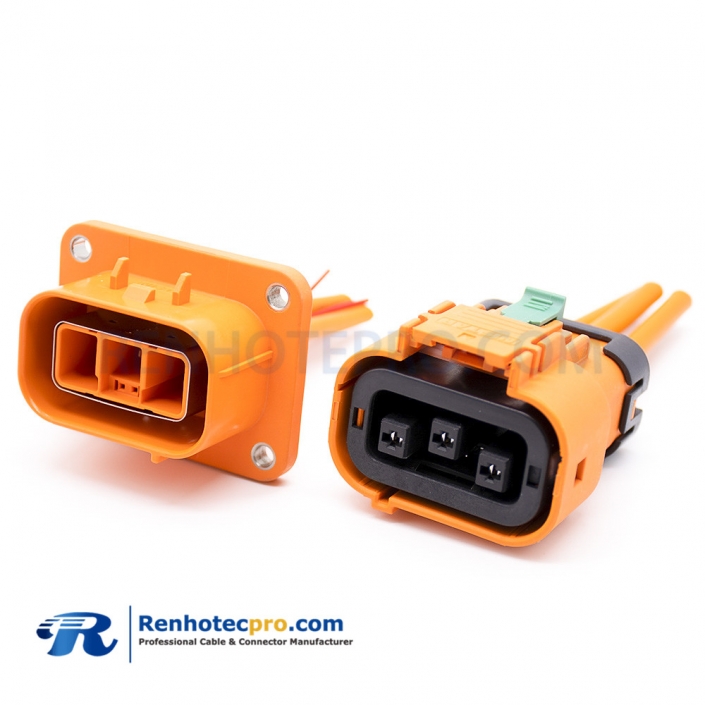

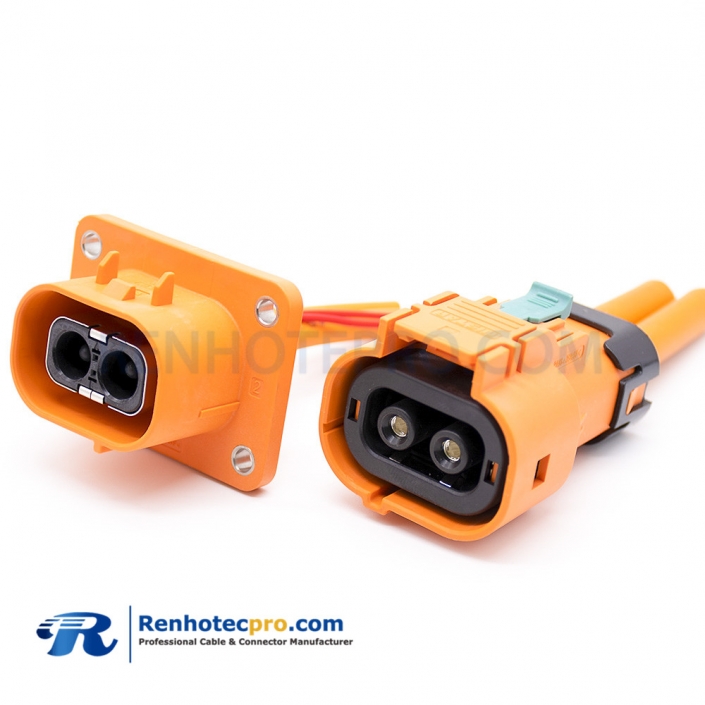

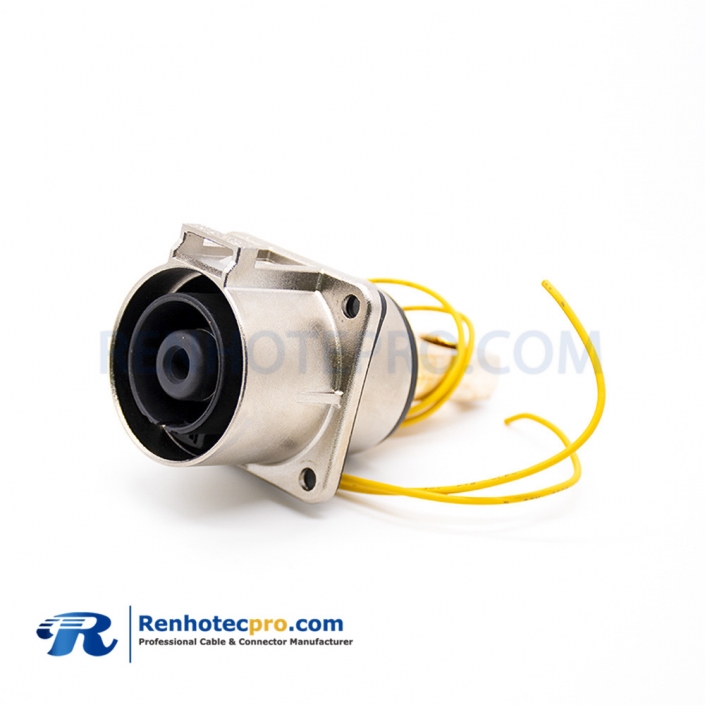

High Voltage Interlock Connector

High Voltage Interlock Connectors are designed to allow signal transmission with high voltage ratings without safety risk for the operators. Our portfolio of optimized high voltage solutions help ensure product safety, efficiency, and versatility. Applications include electrical vehicle (EV) batteries, inverters, junction boxes, and power distribution boxes.

pdf_documents

Download our PDF HVIL Series Connectors Presentation Now!

HVIL Connectors presentation;
Connector interface, material and specifications;
Contact Pinout option and order number for your easy selection.

Features
  • Up to 3500V
  • -40°C to +125°C operating temperature range
  • 2.8mm to 10mm RADSOCK contact size
  • Up to 330A operating current
  • IP67 IP6K9K(mated)
  • 2.5mm2 x 70mm2 wire size

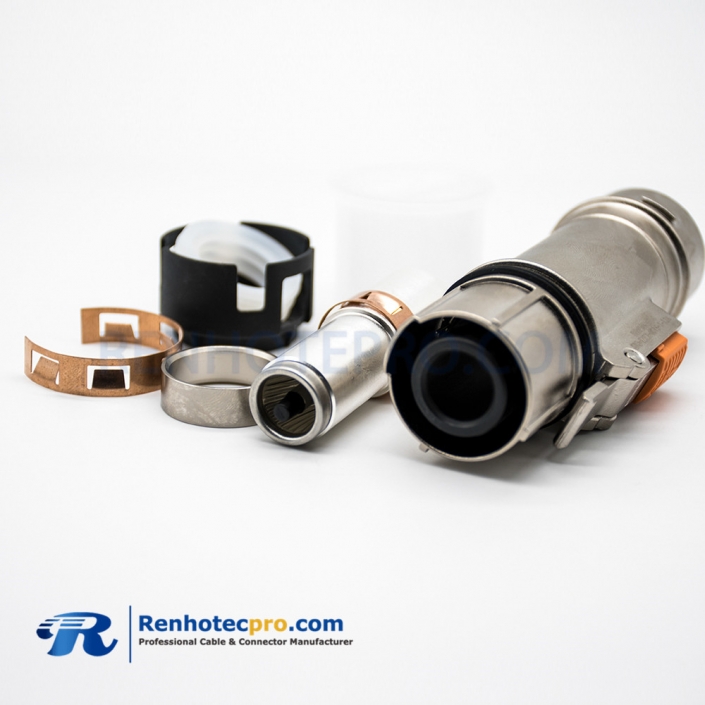

  • Includes secondary locking and HVIL

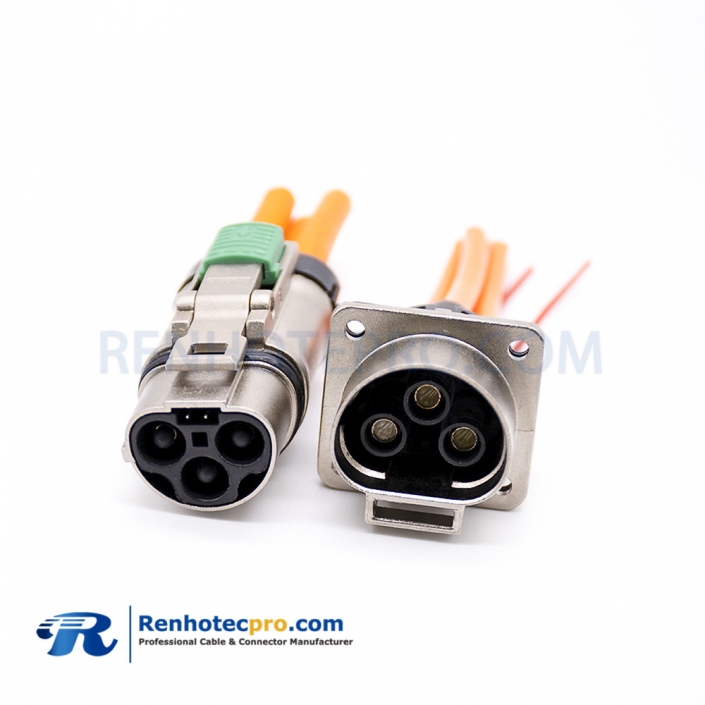

  • Plastic and Metal material
  • Touch Proof (IP2x)

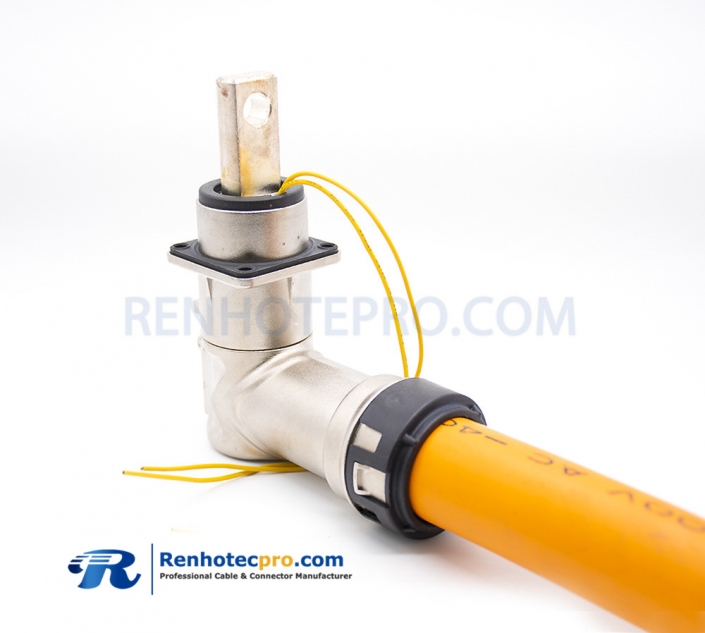

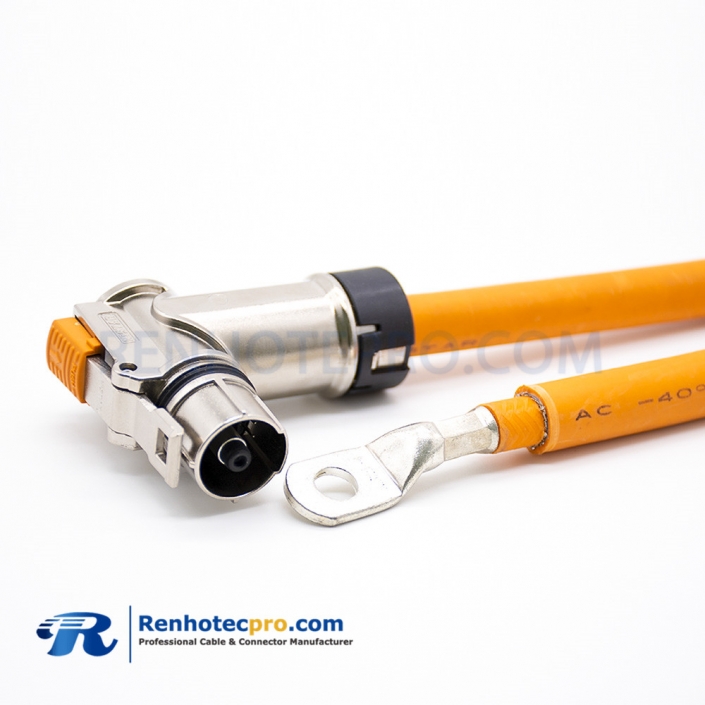

  • Straight and right angle
Specification
Number of Contacts 1-3 Positions Available
Rated Voltage  800V   AC/DC
Withstand Voltage 3500V  AC
Insulation Resistance ≥500MΩ
Matin Cycles >100
Protection Degree IP67 IP6K9K(mated)
Shielding 360 degree Shielding
Housing Material Plastic PA66/Zinc Alloy Nickel Plating
Insolutar Material PA/Nelon
Contact Material Copper Alloy Silver Plating
Insolutar Color Orange/Black/Y/G/R
KEY A/Y/U/V/W
Application

Renhotec’s HVIL Connectors meet your needs for transmitting high potential energy and cover a broad range of applications:

  • Electrical vehicle (EV) batteries
  • Inverters
  • Junction boxes
  • Power distribution boxes

Our product range about HVIL Connectors include not only spec listed below, and also customized spec made according to our current customers. Kindly contact us to learn more details about it.
