MS5015 Connectors

Renhotec provide wide range of MS 5015 Connectors which have similar model and quality with top brands in the world. More competitive and reasonable FACTORY price with many different cable connectors, panel-mounted receptacles for choice.

Rugged, high-performance in harsh environment, industrial and military application .

Ask for a quote

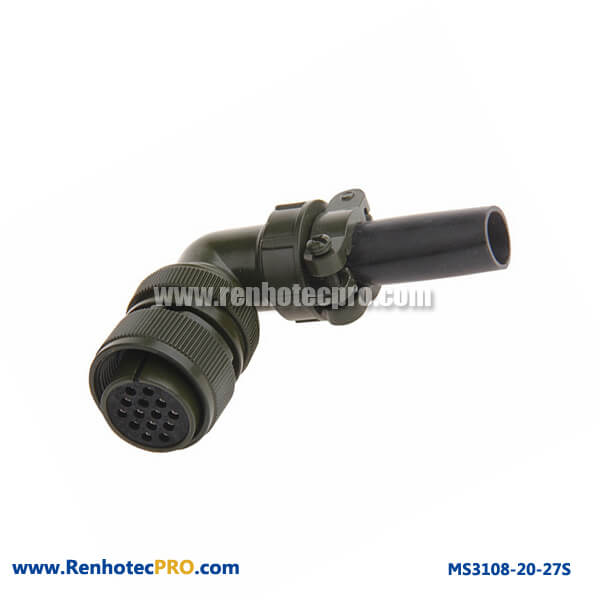

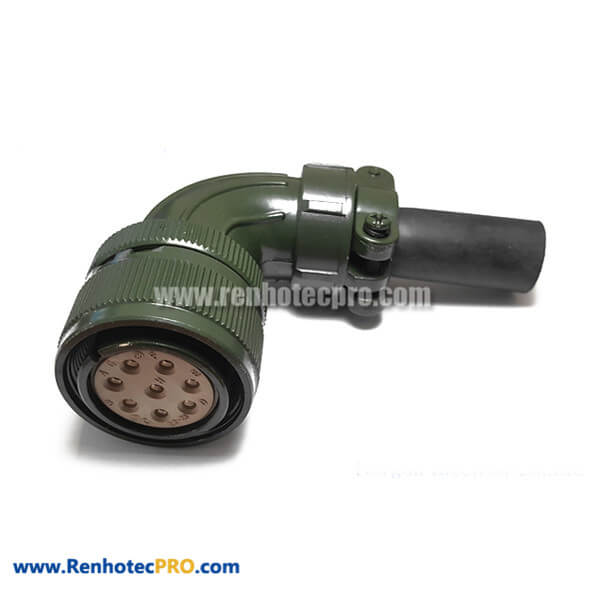

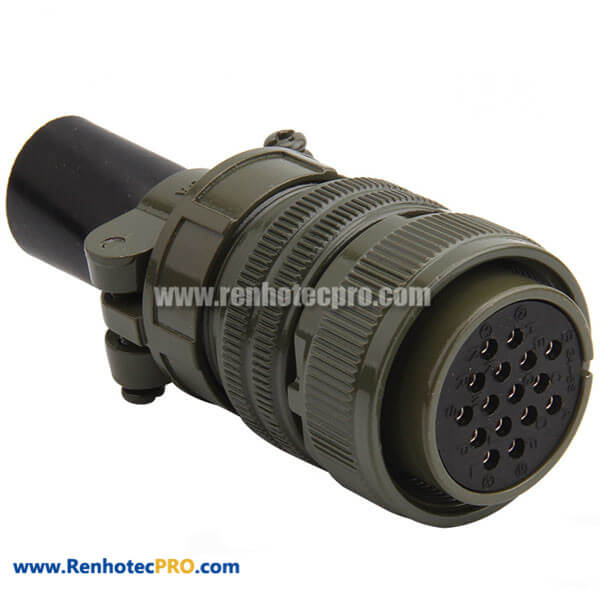

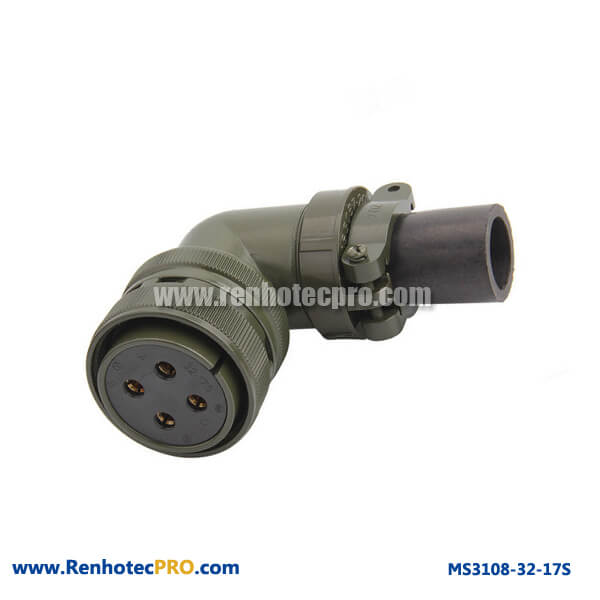

MS5015 Products

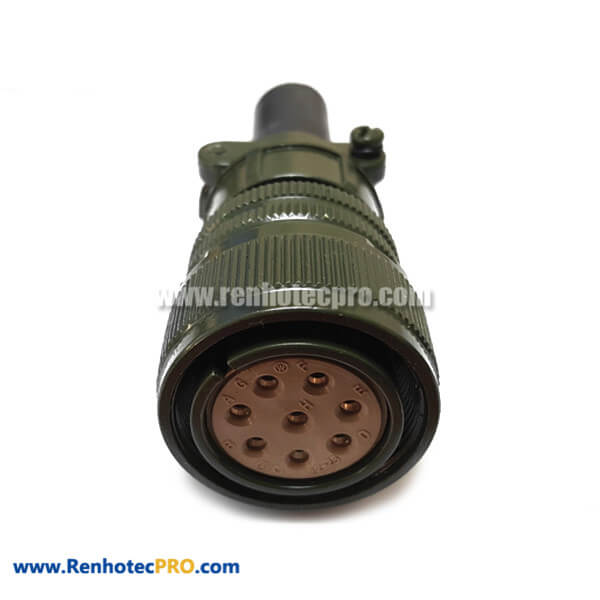

2 Pins Socket Cable MS 5015 Connector Connector & Rubber Bushing MS3106

2 Pins Socket Cable MS 5015 Connector Connector & Rubber Bushing MS3106

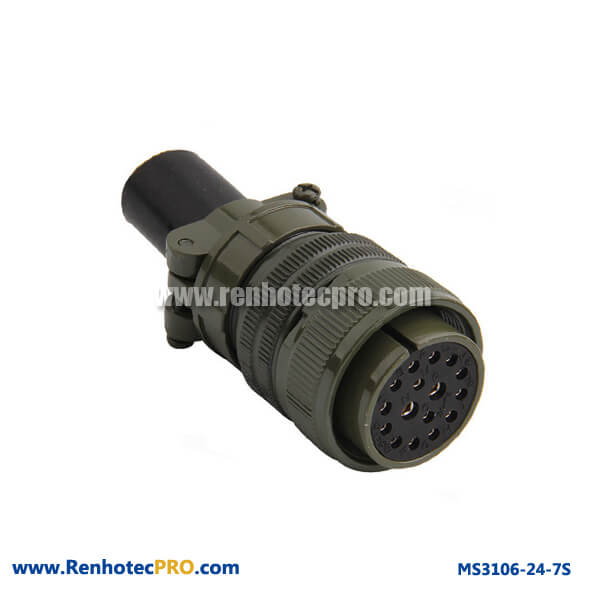

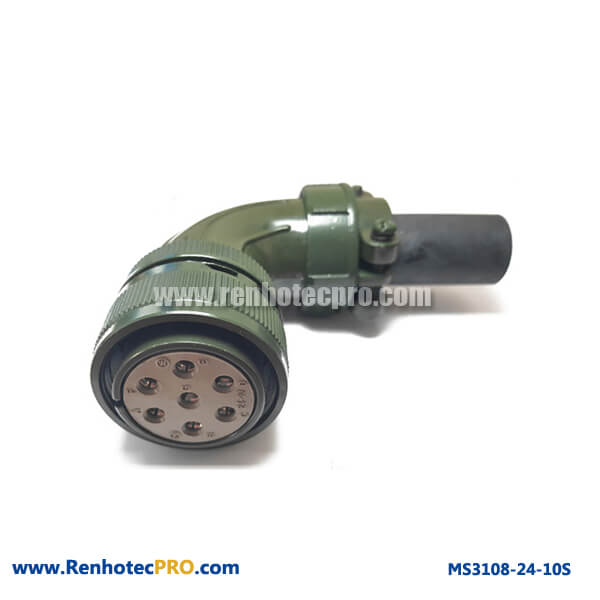

MS3106 Straight Plug 7 Pins Socket Cable Connector & Rubber Bushing

MS3106 Straight Plug 7 Pins Socket Cable Connector & Rubber Bushing

MS 5015 3 Pin Straight Plug 4 Hole Flange Mount MS 3102 Connector

MS 5015 3 Pin Straight Plug 4 Hole Flange Mount MS 3102 Connector

MS 5015 Connector 7 Pin Straight 4 Hole Flange Mount MS3102

MS 5015 Connector 7 Pin Straight 4 Hole Flange Mount MS3102

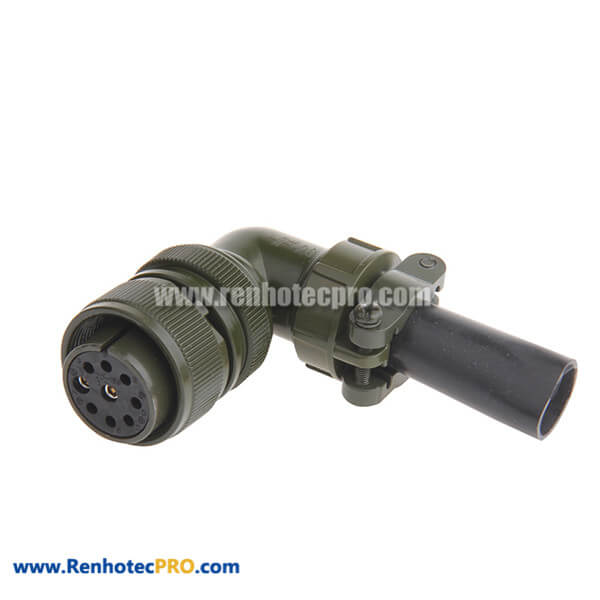

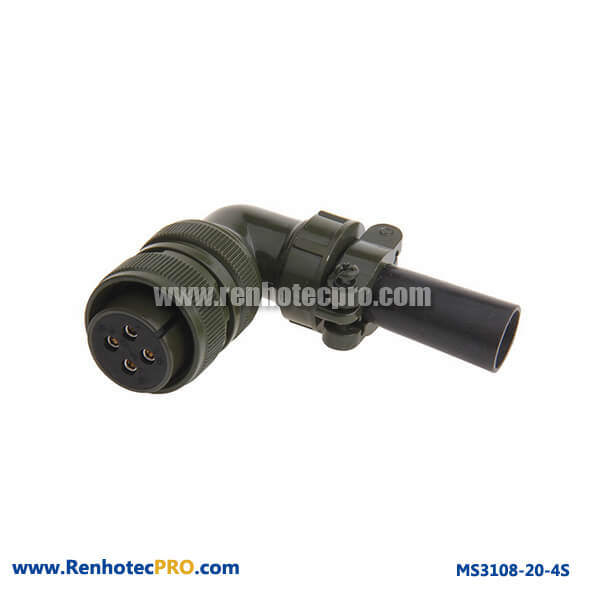

MS3108A10SL-4S Right Angle Plug 2 pin Connector

MS3108A10SL-4S Right Angle Plug 2 pin Connector

MS3106A10SL-4S Straight Female Plug 2 pin Circular Power Connector

MS3106A10SL-4S Straight Female Plug 2 pin Circular Power Connector

MS3102A10SL-4P Box Mount Receptacle 2 #16 Solder Pin 2 Wire Connector

MS3102A10SL-4P Box Mount Receptacle 2 #16 Solder Pin 2 Wire Connector

MS3108A10SL-3S Olive Drab Cadmiun Plated 3 Contacts Plug Connector With Bushing

MS3108A10SL-3S Olive Drab Cadmiun Plated 3 Contacts Plug Connector With Bushing

MS3106A10SL-3S 3 #16 Solder Socket Straight Plug Metal Circular Connector

MS3106A10SL-3S 3 #16 Solder Socket Straight Plug Metal Circular Connector

MS3102A10SL-3P 3 Pin AWG16 Cable Solder Electric Socket Terminal Connector

MS3102A10SL-3P 3 Pin AWG16 Cable Solder Electric Socket Terminal Connector

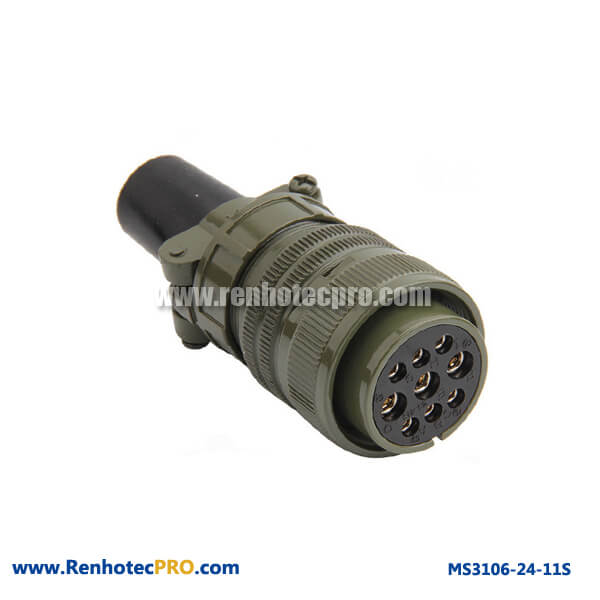

MS 5015 Connector Straight Plug Cable Connector & Rubber Bushing

MS 5015 Connector Straight Plug Cable Connector & Rubber Bushing

2 Pins Socket MS 3102 Straight Plug MS 5015 Connector

2 Pins Socket MS 3102 Straight Plug MS 5015 Connector

Features
  • Made according to the MS-C-5015 Standard for industrial application.
  • Thread coupling and bayonet coupling connect technique for high stability and easy connection.
  • Reliable performance with highpower carrying capacity, inherent ruggedness and capacity to withstand extreme harsh environment.
  • Competitive price from factory with Small MOQ(minimal order quantity) to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM order to meet your customized requirement;
Specification

General Specification

Insulation Resistance ≧5000MΩ
Normal Temperature 25°C
Ambient Temperature -55°C – 125°C
Relative humidity 95+ -4% at 40°C
Frequency 10~2000 Hz147 m/s²
Shock 490 m/s²
Withstanding voltage 2000V
Service Life/Durability ≧500 Insertation and Extraction
Dielectric Strength 2KV
Working Voltage AC 500V  DC 700V

Contact Specification

Contact Number Contact Diameter
(mm)		 Rated Current

(A)

 Contact Resistance
Number Welding Diameter

(mm)

 Test Current

(A)

 Permitted Pressure Drop

(mv)
16# Φ1.7 Φ1.6 13A 20A 21mv
12# Φ2.8 Φ2.4 23A 35A 20mv
8# Φ5.3 Φ3.6 46A 60A 12mv
4# Φ8 Φ5.7 80A 110A 10mv
0# Φ11.8 Φ9.1 150A 200A 10mv
Lead Wire Size Contact Insertation
& Extraction Force (kg)
AWG Wire Lead Wire Size
(mm²)		 External Diameter

(mm)

 Maximum Average Minimum
22# – 16# 1.3mm² Max Φ1.7 – 3.3 1.36 0.96 0.11
14# – 12# 3.5mm² Max Φ2.9 – 4.3 2.26 1.58 0.22
10# – 8# 8.0mm² Max Φ4.2 – 6.4 4.53 3.17 0.34
6# – 4# 22mm² Max Φ7.0 – 9.4 6.80 4.76 0.45
2# – 0# 50mm² Max Φ10.6 – 14 9.97 6.35 0.90
Material & Finish
Parts Material Finish
Shell Aluminum Alloy/Brass/Stainless Steel Electrophoresis Army green cadmium/
galvanization(White)/ passivation
Terminals/Contacts Brass Gold/Silver Plated
Insulator Synthetic Rubber/Bakelite
Processing Technology
Aluminum Alloy die-casting
Copper alloy  turning operation
Stainless steel  turning operation
Production Flow
Raw Material → Die Casting/Turning Operation → Surface Treatment → Assembly
Application

Renhotec’s MS 5015 Connectors are ideal for automation and many industrial applications, mainly include the following aspects:

  • Sensor and Actuators of Automation Industry;
  • Communication, Aviation and Navigation;
  • mechanical Industry;
  • Automobile Manufacture;
  • Electronic Instruments;
  • Industrial Computer;
  • Outdoor LED Lighting;
  • Engineering Machinery;
  • Oil Exploration;

Our product range about MS 5015  Connectors include not only spec listed below, and also customized spec made according to our current customers. Kindly contact us to learn more details about it.
