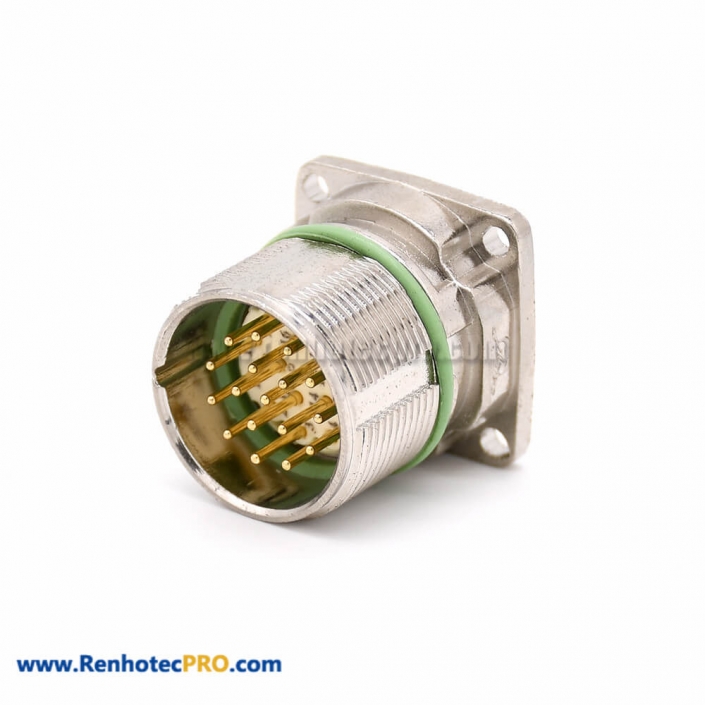

M23 connectors are specifically developed for signal and power applications meet stringent requirements for reliability and performance in the harshest of industrial environments.

Which typically used for providing high performance, reliable and robust connections in commercial and industrial automation applications

  • IP67 rating offer a high degree of protection against environmental factors such as water, dirt and moisture.
  • Available in 6/7/8/9/12/16/17/19 position.
  • Compact, robust design for power, signal communication system.

M23 Sub-categories

M23 Connector Products

All 16 /AC (Alternating Current) 0 /AC (Alternating Current) 0 /AC (Alternating Current) 0 /BPA20 Series 0 /BPC10 Series 0 /BPC20 Series 0 /BPC30 Series 0 /BPC50 Series 0 /D-sub Combination Connectors 0 /D-sub High Density Connector 0 /D-sub Standard Connector 0 /DC (Direct Current) 0 /DC (Direct Current) 0 /Dustproof Cap 0 /EV Charger 0 /EV Connector 0 /GB/T Series 0 /GX 12 Connector 0 /GX 16 Connector 0 /GX 20 Connector 0 /GX 25 Connector 0 /GX 30 Connector 0 /Gx Aviation Connector 0 /High Voltage High Current Connectors 0 /HVIL 150A Series 0 /HVIL 16A Series 0 /HVIL 20A Series 0 /HVIL 250A Series 0 /HVIL 40A Series 0 /HVIL 80A Series 0 /HVIL Connector 0 /HVIL Series 0 /Industry Connector 0 /M12 Adapter & Splitter 0 /M12 Cable(Cordsets) 0 /M12 Connectors & Cables 0 /M12 Field Wireable Connectors 0 /M12 Panel Receptacles 0 /M16 Connectors & Cables 0 /M16 Field Wireable Connectors 0 /M16 Panel Receptacles 0 /M18 Adapter & Splitter 0 /M18 Connectors & Cables 0 /M23 Connectors & Cables 0 /M23 Field Wireable Connectors 5 /M23 Panel Receptacles 11 /M40 Adapter & Splitter 0 /M40 Connectors & Cables 0 /M40 Panel Receptacles 0 /M5 Connectors & Cables 0 /M5 Panel Receptacles 0 /M8 Cables(Cordsets) 0 /M8 Connectors & Cables 0 /M8 Field Wireable Connectors 0 /M8 Panel Receptacles 0 /M9 Connector 0 /Manual Service Disconnect 0 /MC4 Cable 0 /MC4 Solar Connector 0 /MC4 Tools 0 /MIL 38999 Connector 0 /Mil Spec D-Sub Connector 0 /Mini MSD Series 0 /MS 5015 Connector 0 /MS5015-10SL 0 /MS5015-14S 0 /MS5015-16 0 /MS5015-16S 0 /MS5015-18 0 /MS5015-20 0 /MS5015-22 0 /MS5015-24 0 /MS5015-28 0 /MS5015-32 0 /MSD Series 0 /New Energy EV Connector 0 /P Series Connector 0 /P20 Connector 0 /P24 Connector 0 /P28 Connector 0 /Push-Pull High Current Series 0 /PV Solar Connector 0 /RA16 Connector 0 /RA20 Connector 0 /RA24 Connector 0 /RA28 Connector 0 /RA32 Connector 0 /RA40 Connector 0 /SAEJ1772/Type1 Series 0 /SCSI Cable 0 /SCSI Series 0 /Sensor Connector 0 /Trunk Battery Connectors 0 /Type2 Series 0 /USB Waterproof Connector 0 /Waterproof D-sub 0

Related Categories

Interested with our M23 Connectors? Ask for a FREE quote now!

We will send you FREE quotation or samples before you make decision, no cost, no risk!

M23 Connector Technical Datasheet

Connector Features:

  • M23 connectors available in: 6/7/8/9/12/16/17/19 pin
  • Non-removable Contacts
  • Available as loose piece or as pre-made cables

Electrical Characteristics

  • Rated current: 8-20 A
  • Contacts resistance: ≤ 3 mΩ
  • Insulation resistance: ≥10³ MΩ
  • Rated voltage: 150/250V

Mechanical Characteristics:

  • Coupling: thread locking
  • Locking System: Screw M23*1.0
  • Mechanical operation: >500 mating cycles

Environmental Characteristics

  • Ambient temperature: -25°C ~ + 85°C
  • IP rating: IP67

M23 Connector Application

M23 circular connectors are Ideal for advanced servo drive encoder feedback applications, packaging, robotics, printing, machine tool, medical and automation environments where control signal transmission or power are required in a robust and compact delivery system.
